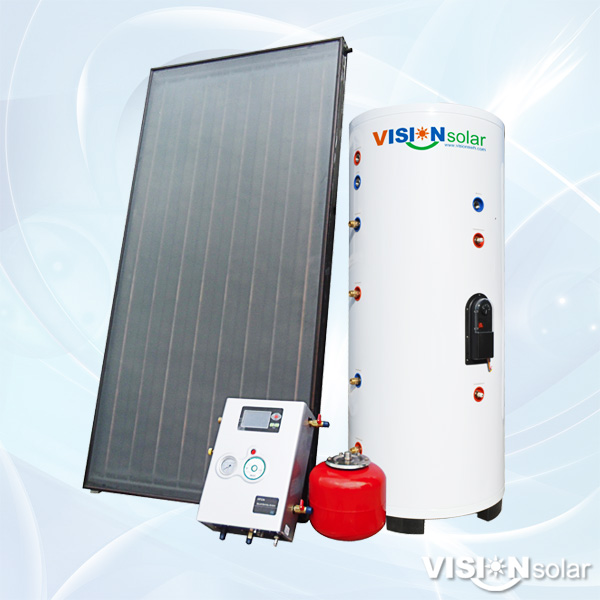

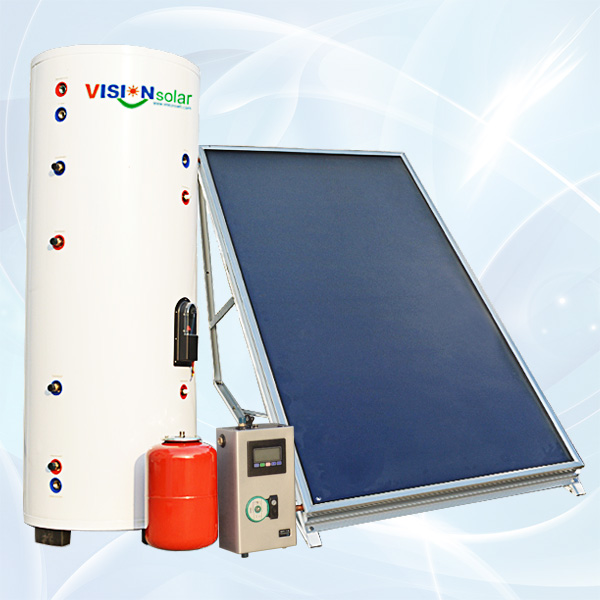

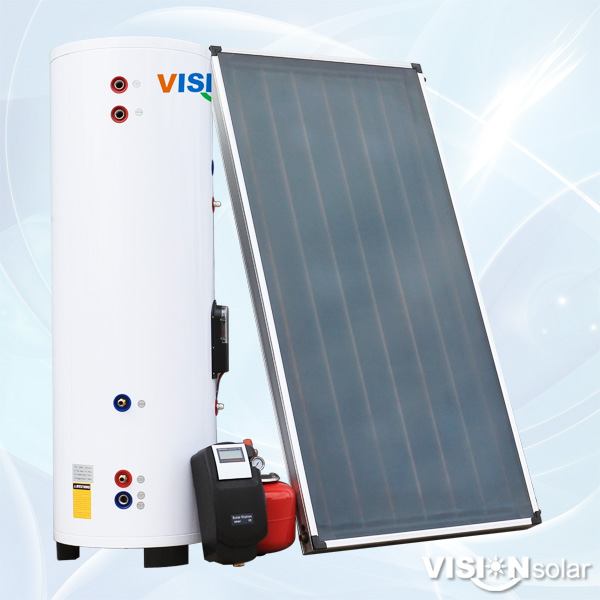

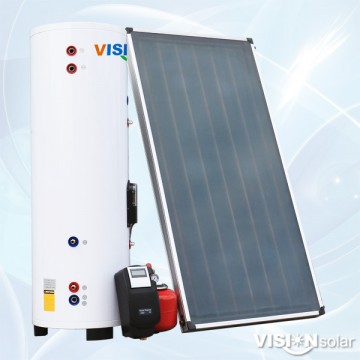

Split Flat Panel Pressurized Solar Water Heater VF-BA

List: 018
Price: USD 90.00/Set
MOQ: 1 Set

Send Inquiry

Description

SYSTEM DESCRIPTION
Vision VF series split pressurized solar water heater incorporates a flat panel solar collector, pressurized water tank, pump station and accessories. It is specially designed for villa buildings. The flat panels may be installed either on house roof or wall while water tank may be placed anywhere inside villa.
MAIN FEATURES
High efficiency flat plate for fast indirect solar water heating
Reliable collector with average daily efficiency over 54.1%
System works without high temperature problems
Super anti freezing performance for frost climate
High pressure hot water supply from storage tank
Compatible with electric or gas heating devices
Working all year round even in cold climate
Designed for 30 years working life
SPECIFICATION
Tank capacity: 100 ~ 1000 Liter
Flat panel size ( L*W*H ): 2000*1060*82 MM
Cover glass: Low-iron tempered glass with transmittance ≥92%
Absorber coating: Selective black chrome or blue TiNOX coating
Header and riser: High-quality red TU1 copper tubes 22MM inlet outlet
frame material: Anodized aluminum alloy with anti-aging elastic sealing
Inner tank material: Food-grade stainless steel SUS304-2B or SUS316L
Tank insulation: High-density PU foam with 80 hour heat preservation
Outer tank material: High-quality color steel or stainless steel SUS304
Accessories: Solar pump station; electric heater; magnesium anode
Solar collector angle: 25°; 38°; 45°; 90°
Anti-freezing: -40°C
Working pressure: 6.0 bar
