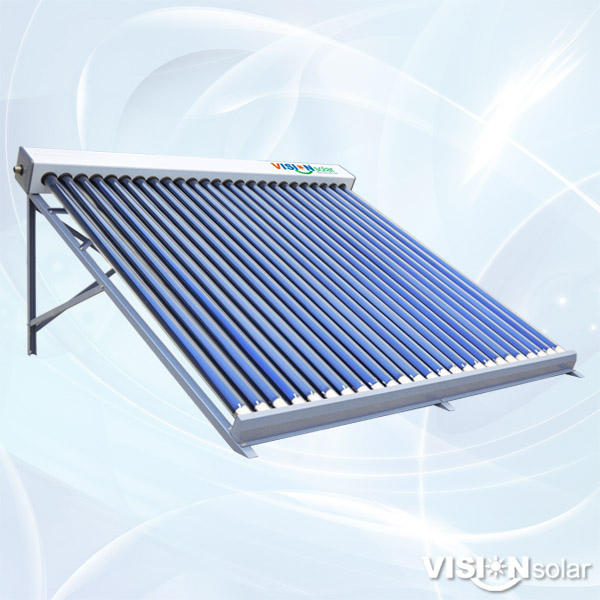

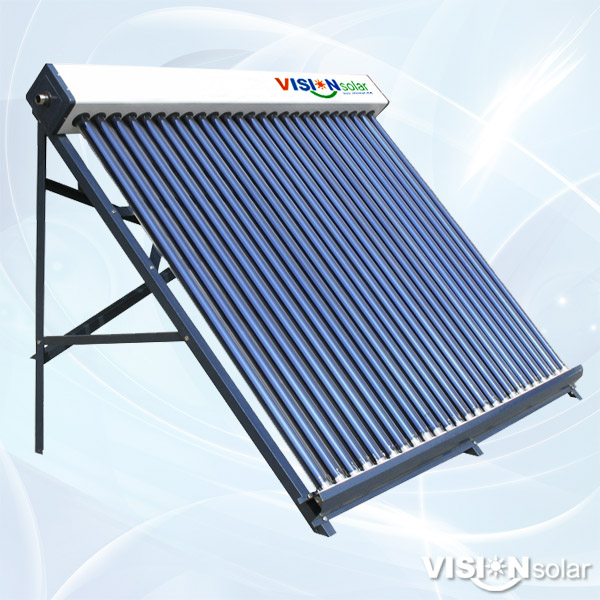

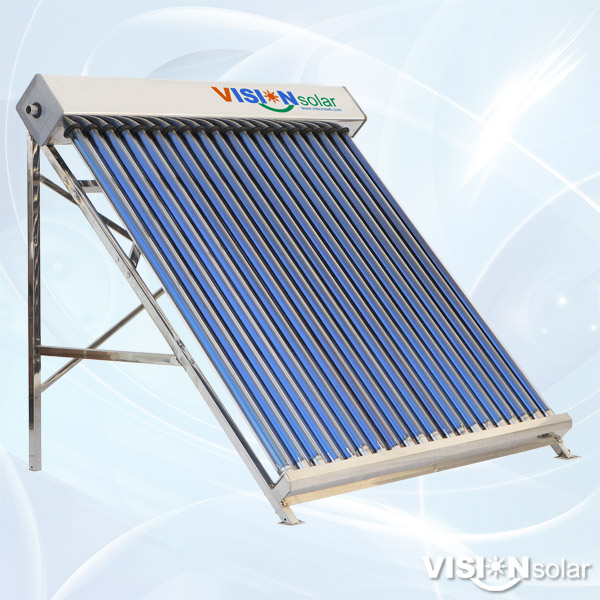

Non-pressurized Vacuum Tube Solar Collector VNC-CGS

List: 030
Price: USD 90.00/Set
MOQ: 1 Set

Send Inquiry

Description

DESCRIPTION
VISION VNC series non-pressurized solar collector is mostly designed for an open loop system, in which the water is heated directly inside tubes and stored in a separated tank;
The solar collectors are usually connected together in series and parallel to form large-scale heating systems, supplying hot water for hotels, factories, hospitals, schools, swimming pools, space or floor heating applications.
MAIN FEATURES
1. Most economical solar collector for water heating;
2. Wide heating applications for hot water and air;
3. Large heating capacity from 500 to 100,000 Liter;
4. Efficient direct hot water heating with big flow rate;
5. Strong adaptability to flat or slope roof installation;
6. Easy installation and connection with simple system design;
7. With anti-freezing protection it works well in subzero weather;
8. Applicable to active open loop system or thermo siphon system;
SPECIFICATION
Tube quantity: 10; 15; 20; 25; 30 Pcs
Tube size: Φ58*1800MM; Φ47*1500MM
Tube type: Single-target tube; Three-target tube; Super heat tube
Absorber coating: Single-target AL/AL-ALN; Three-target Cu/SS-ALN
Inner manifold: Food-grade stainless steel SUS304-2B or SUS316L
Manifold insulation: High-density PU foam with 80 hour heat preservation
Outer manifold: High-quality color steel; PVDF steel or stainless steel
Bracket: Shaped strong galvanized steel; stainless steel or aluminum alloy
Inlet & outlet: Male threaded 1"; 1 1/2"; 2"
Tilt angle: 25°; 38°; 45°
Hail Resistance: 25MM
Working life: 20 years
