Other plastics machinery
Description

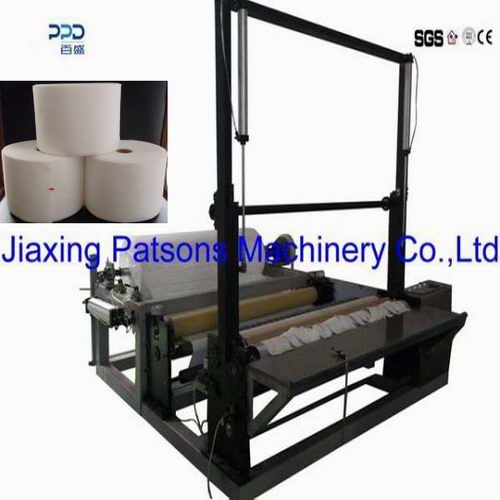

Non woven fabrics roll slitter rewinder is premium model for precise slitting the non woven roll.
Brief Introduction:
Ideal for Non-Woven product factory to slitting Non-woven jumbo roll,slitting from jumbo roll to rewinding different size of small roll.
Process:
Jumbo roll Loading-----Slitting----Rewinding----Auto-stop when reach setting the counting meter----Unloading the finished rewind roll.
Machine specaily designed for precise slitting of non woven with heavy duty production,it is with pneumatic knife system for easy adjusting of the slitting width of finished roll.it is high speed,heavy duty production,very simple in operation,user friendly.
Machine is able to slit&rewind for different nonwoven fabrics,include spunlace non woven,viscose nonwoven,ployster nonwoven,JH nonwoven,needle punched non woven,PP nonwoven,and other textile fabrics.
Technical data:
Model:PPD-NW 1300 Slitter Rewinder
Unwind roll max width:1300mm
Unwind roll max outer diameter:1200mm
Unwind roll core inner diameter:76mm
Rewind roll width:50-1300mm
Rewind roll max outer diameter:600mm
core inner diameter:76mm
Speed:150m/min
Electricity:220/380/415/450v 50&60hz
Power:3kw
Dimension：2600x2600x1800mm
Weight:1600kg
