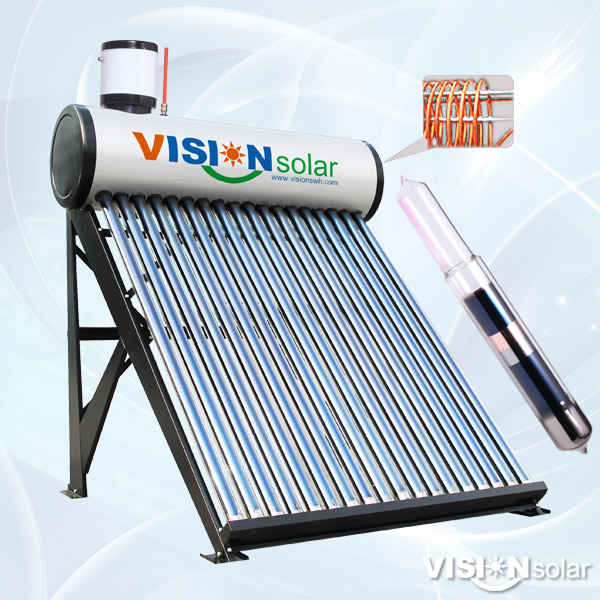

Pre-heat Pressurized Solar Water Heater VPS-SA
List: 010
Price: USD 90.00/Set
MOQ: 1 Set
Description
SYSTEM DESCRIPTION
VISION VPS series pre-heat solar water heater incorporates a number of high efficiency vacuum tubes, an atmospheric water tank with exchanger, the supporting bracket and accessories.
The vacuum tube for VISION non-pressure solar water heater could be single-target tubes, three-target tubes, super heat tubes, and heat pipe tubes.
The solar vacuum tubes heat enough hot water to store in tank; copper coil inside tank makes fast heat exchanger from hotter water surrounded to colder water running through it, in this way we get instant and high pressure hot water from copper coil end.
MAIN FEATURES
Adaptable with several kinds of solar vacuum tubes
Water in storage tank is always full and not to use
High pressure hot water supply from copper coil
Clean and instant hot water from heat exchanger
Compatible with electric or gas heating devices
Working all year round even in cold climate
Designed for 20 years working life
SPECIFICATION
Storage tank capacity: 100 ~ 300 Liter
Vacuum tube size: Φ47*1500MM; Φ58*1800MM
Tube type: Single-target/ three-target tube; super heat tube; heat pipe tube
Absorber coating: Single-target AL/AL-ALN; Three-target Cu/SS-ALN
Inner tank material: Food-grade stainless steel SUS304-2B or SUS316L
Heat exchanger: High pressure copper or stainless coil or a double tank
Tank insulation: High-density PU foam with 80 hour heat preservation
Outer tank material: High-quality color steel or stainless steel
Bracket material: Galvanized steel or stainless steel or aluminum alloy
Accessories: Solar controller; assistant tank; electric heater; magnesium anode
Tilt angle: 25°; 38°; 45°
Working pressure: 6.0 bar
Hail resistance: 25MM
Working life: 20 years
