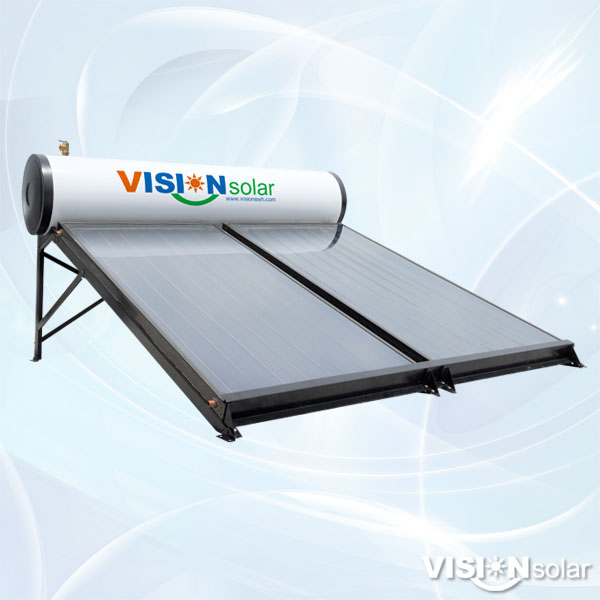

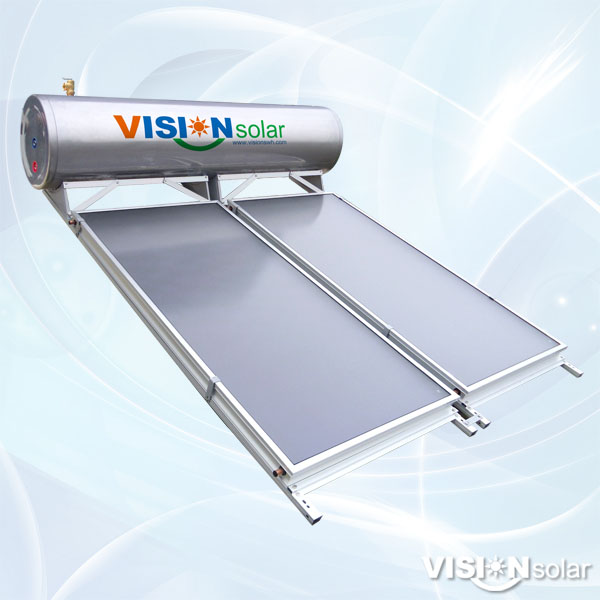

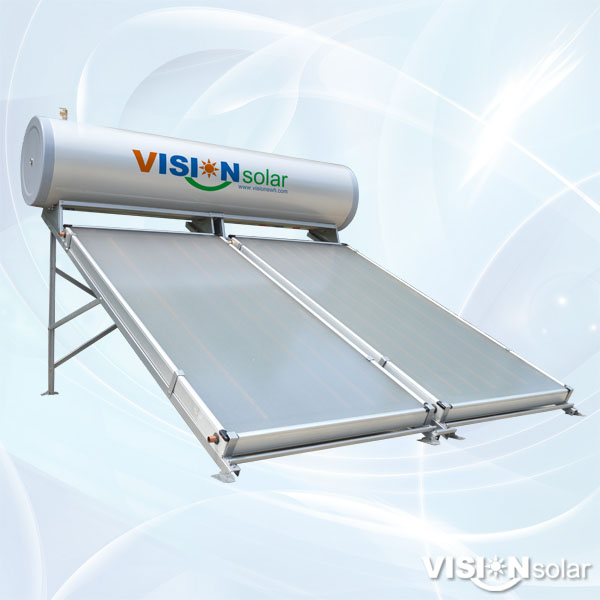

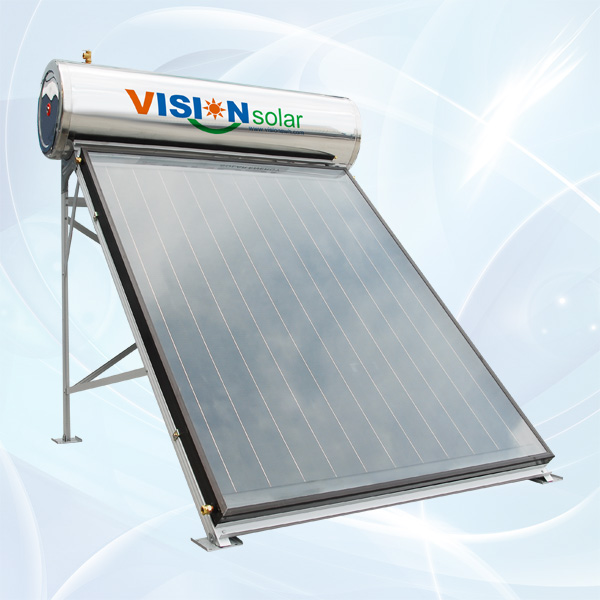

Flat Panel Pressurized Solar Water Heater VPF-CG

List: 014
Price: USD 200.00/Set
MOQ: 1 Set

Send Inquiry

Description

SYSTEM DESCRIPTION
VISION VPF series solar water heater usually incorporates a number of high efficiency flat panels, a top situated high pressure hot water tank, supporting bracket and accessories.
MAIN FEATURES
Reliable collector with average daily efficiency over 54.1%
High efficiency flat panels for fast direct water heating
System works without high temperature problem
High pressure hot water supply from storage tank
Compatible with electric or gas heating devices
Working all year round even in cold climate
Designed for 25 years working life
SPECIFICATION
Tank capacity: 100; 150; 200; 250; 300 Liter
Flat panel size: 2000*1060*82 MM ( L*W*H )
Cover glass: Low-iron tempered glass with transmittance ≥92%
Absorber coating: Selective black chrome or blue TiNOX coating
Header and riser: High-quality red TU1 copper tubes 22MM inlet outlet
frame material: Anodized aluminum alloy with anti-aging elastic sealing
Inner tank material: Food-grade stainless steel SUS304-2B or SUS316L
Tank insulation: High-density PU foam with 80 hour heat preservation
Outer tank material: High-quality color steel or stainless steel
Bracket material: Galvanized steel; stainless steel; aluminum alloy
Accessories: Solar controller; electric heater; magnesium anode
Bracket angle: 25°; 38°; 45°
Working pressure: 6.0 bar
Working life: 25 years
