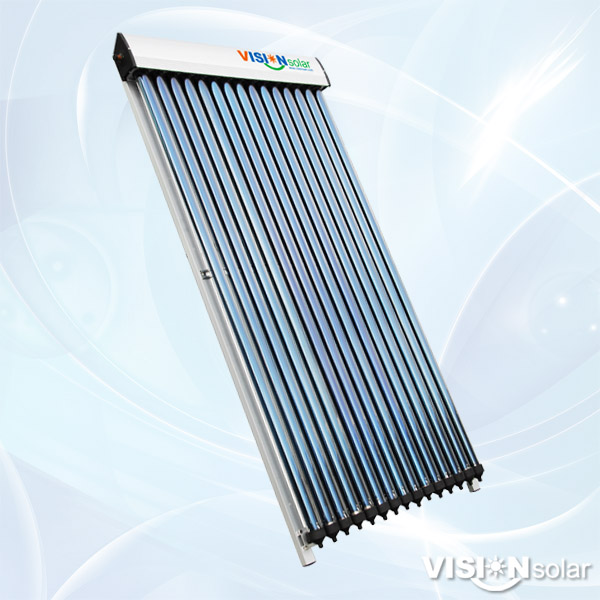

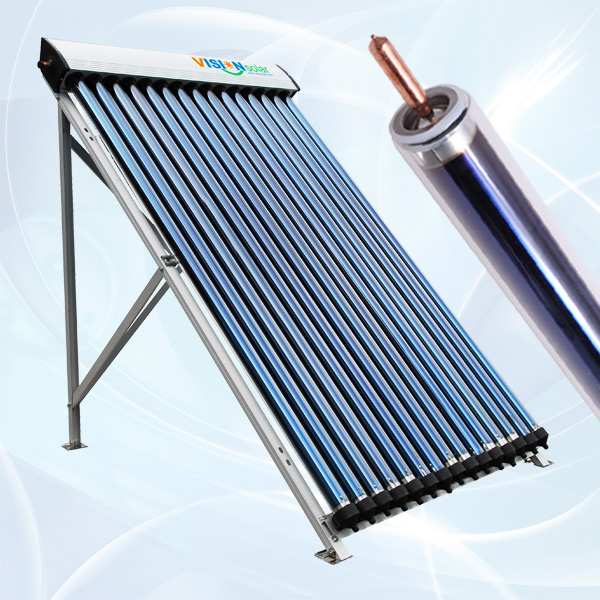

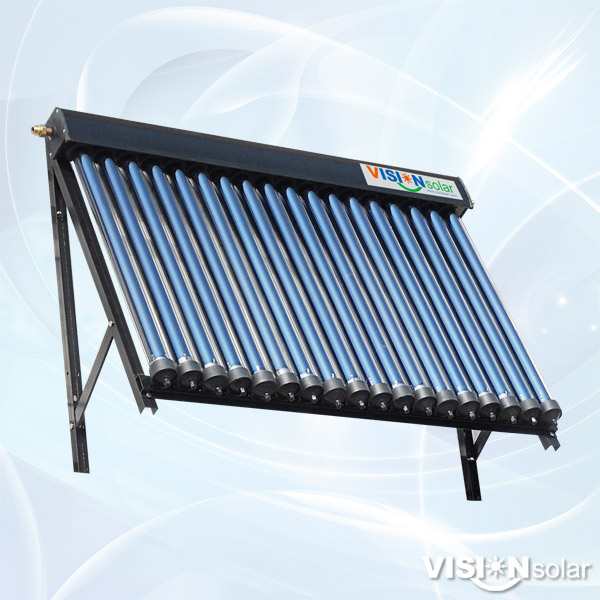

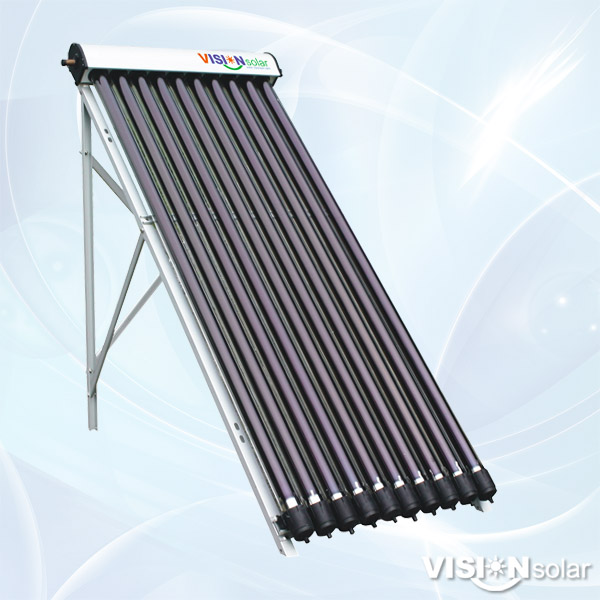

Pressurized Heat Pipe Solar Collector VHC-58

List: 032
Price: USD 300.00/Set
MOQ: 1 Set

Description

DESCRIPTION
VISION VHC series high pressure heat pipe solar collector is specially designed for active closed loop systems, with connection in series and parallel for domestic or commercial solar heating applications, supplying hot water, room and floor heating for hotels, factories, hospitals, schools.
MAIN FEATURES
1. Most popular for indirect solar water heating;
2. Efficient solar water heating with little heat loss;
3. Super anti-freezing performance to work below - 40°C;
4. High pressure working with safe and stable performance;
5. Wide applications for solar water, room and floor heating;
6. Strong adaptability to various roof structure installations;
SPECIFICATION
Tube quantity: 12; 15; 18; 20; 24; 30 Pcs
Tube size: Φ58*1800MM; Φ47*1500MM
Vacuum tube: Three-target coating Cu/SS-ALN
Heat pipe: High-quality TU1 red copper pipe, 14MM condenser
Manifold header: High-quality TP2 copper pipe 35MM diameter
Manifold insulation: Rock wool plus high-density PU foam
Manifold shell: Anodized aluminum alloy with silicon tube seal
Bracket: Shaped strong aluminum alloy for flat and slope roof
Inlet & outlet: 22MM compression or 1" male thread
Tilt angle: 25°; 38°; 45°
Hail Resistance: 25MM
Test pressure: 12 bar
Working pressure: 6 bar
Anti-freezing: - 40°C
Working life: 25 years

solar water heater, pre-heat solar water heater, pressurized solar water heater,
