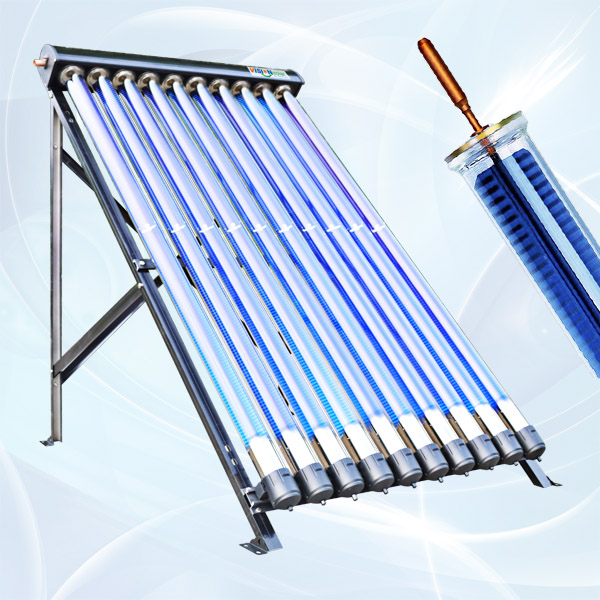

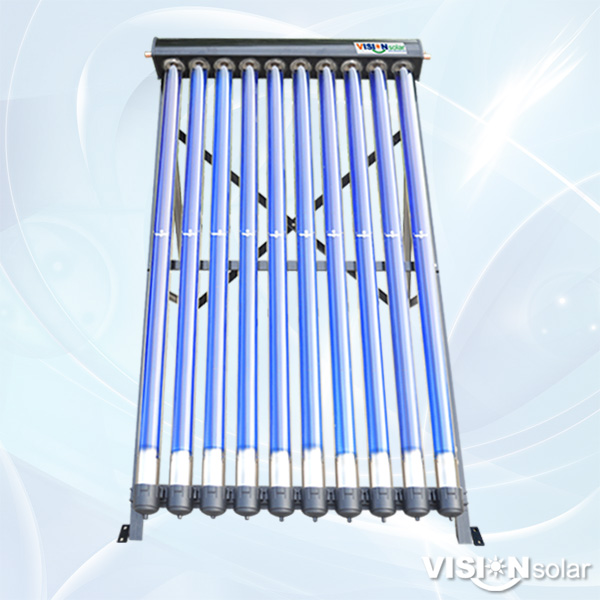

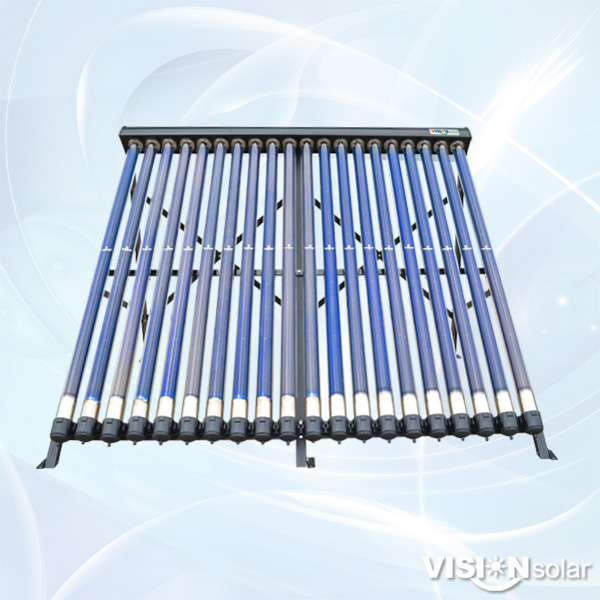

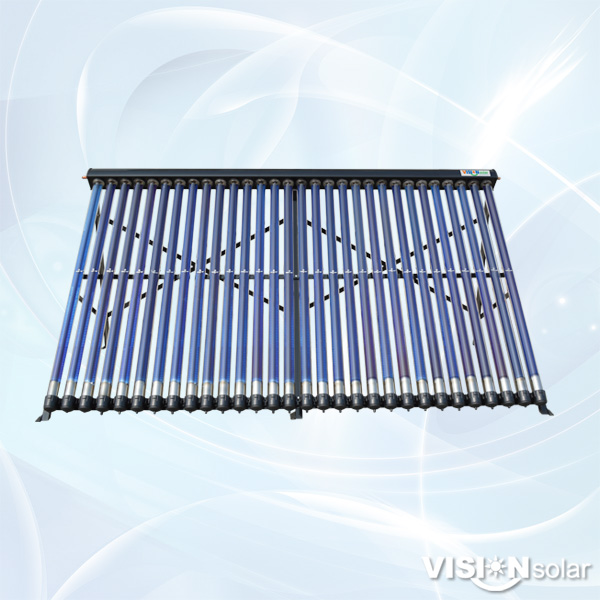

Pressurized SHCMV Solar Collector VMC-70

List: 035
Price: USD 400.00/Set
MOQ: 1 Set

Description

DESCRIPTION
VISION VMC series high pressure SHCMV solar collector is specially designed for active closed loop systems, with connection in series and parallel for domestic or commercial solar heating applications, supplying hot water, room and floor heating for hotels, factories, hospitals, schools.
MAIN FEATURES
1. Most popular for high temperature solar water heating;
2. Super anti-freezing performance to work below -40°C;
3. Most efficient indirect solar heating with little heat loss;
4. High pressure working with safe and stable performance;
5. Wide applications for solar water, room and floor heating;
6. Strong adaptability to various roof structure installations;
SPECIFICATION
Tube size: Φ70*1900MM; Φ70*2000MM;
Tube quantity: 10; 15; 20; 25; 30 Pcs
Glass tube: Transparent single layer borosilicate glass
Absorber: Cu/SS-ALN selective coated aluminum plate
Heat pipe: TU1 red copper pipe with 14MM or 24MM condenser
Manifold header: High-quality TP2 copper pipe 35MM diameter
Manifold insulation: High-density mould compressed rock wool
Manifold shell: Anodized aluminum alloy with silicon tube seal
Bracket: Shaped strong aluminum alloy for flat and slope roof
Inlet & outlet: 22MM compression or 1" male thread
Tilt angle: 25°; 38°; 45°
Hail Resistance: 35MM
Test pressure: 12 bar
Working pressure: 6 bar
Anti-freezing: - 40°C
Working life: 25 years

solar water heater, pre-heat solar water heater, pressurized solar water heater,
