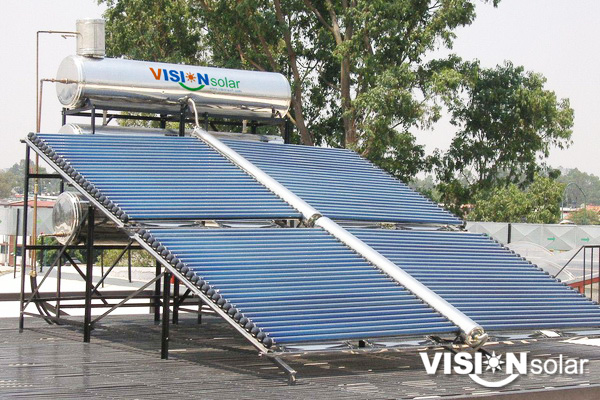

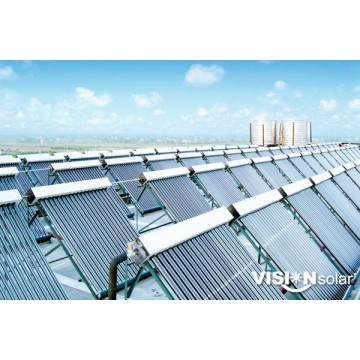

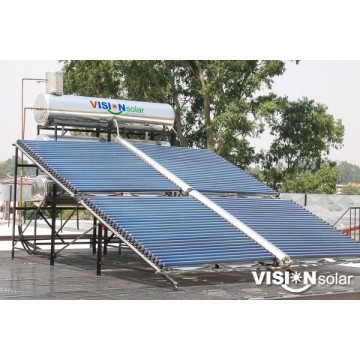

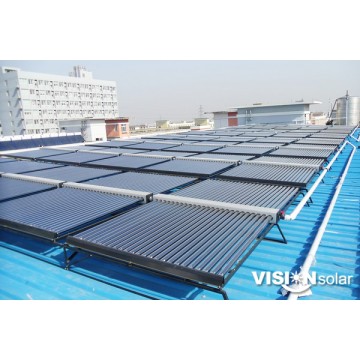

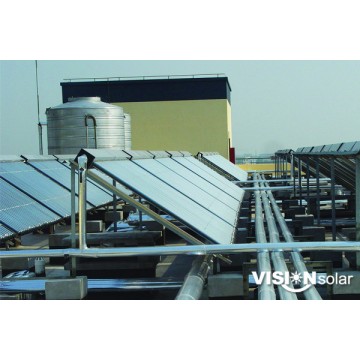

Active Open-loop Solar Water Heating System VPS-VT

List: 020
Price: USD 1000.00/Set
MOQ: 1 Set

Description

SYSTEM DESCRIPTION
VISION VPS-VT is a kind of active open-loop solar water heating system which heat water directly inside vacuum tubes; the system incorporates a number of low-pressure vacuum tube solar collectors, a single or several atmospheric hot water tanks, one control system, pump system and accessories.
The control system controls pump circulation to make heat exchange from solar collectors to storage tank.

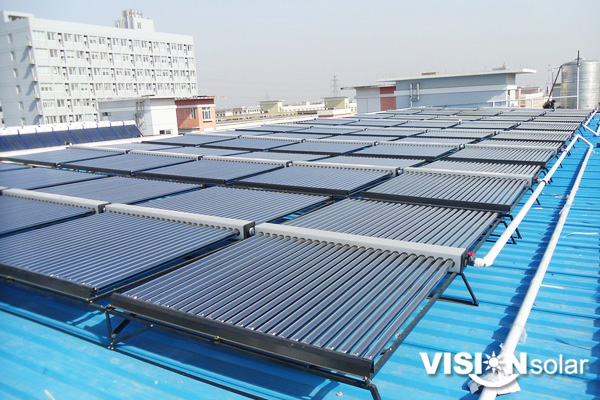

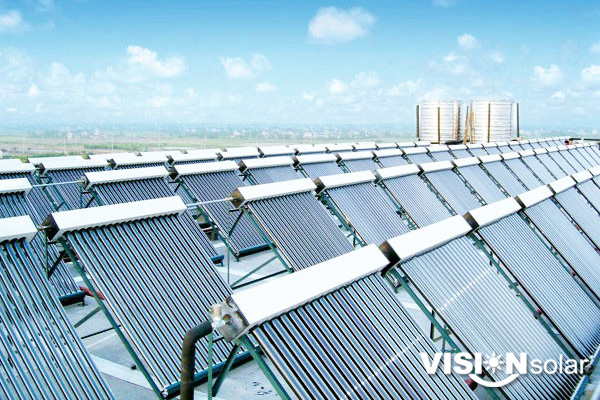

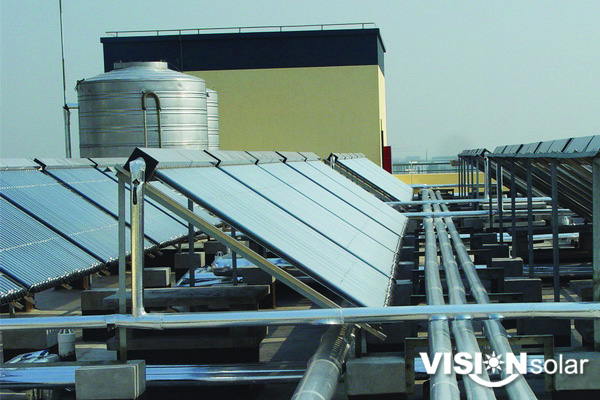

VISION commercial solar system is widely used supplying hot water for hotels, schools, factories, hospitals, swimming pools or some other large organizations or communities requiring continuous hot water or house heating.
MAIN FEATURES
1. Daily hot water heating from 1.0 ton to 100 ton
2. Room and floor heating applications are available
3. One of the most economical solar heating systems
4. Compatible with electric or gas heating devices
5. Adaptable to most kinds of building structures
6. Anti-freezing solar system design is available
7. Working all year round even in cold climate
8. Designed for 30 years working life
SPECIFICATION
Tank capacity: 1,000 ~ 10,000 Liter
Solar collector tubes: 15; 20; 25; 30; 40; 50; 60 Pcs
Tube type: Single-target tube; Three-target tube; Super heat tube
Absorber coating: Single-target AL/AL-ALN; Three-target Cu/SS-ALN
Inner manifold: Food-grade stainless steel SUS304-2B or SUS316L
Outer manifold: Square or round shape, color steel or stainless steel
Inner tank material: Food-grade stainless steel SUS304-2B or SUS316L
Outer tank material: High-quality color steel or stainless steel SUS304
Manifold & tank insulation: High-density Polyurethane foaming layer
Collector bracket: Galvanized steel or aluminum alloy or stainless steel
Accessories: Solar controller; circulation pump; pressure pump
Solar collector angle: 0°; 15°; 25°; 38°; 45°; 90°;
Collector inlet & outlet: 1"; 1 1/4"; 1 1/2"; 2";
Hail Resistance: 25MM
Anti-freezing: -10°C
Working pressure: 0 bar
Working life: 20 years

solar water heater, pre-heat solar water heater, pressurized solar water heater,
