φ630 Concentric Type Copper Tape Screening Machine

Driven By Separacted motor


（Click the picture for seeing the video）


一、Application：

Mainly used for screening copper tape of various types of cables.

二、Componse：

1 Φ3150 shaft-less pay-off stand
 1set
2 well-shaped wire guiding stand 1set
3 vertical meter counter 1set

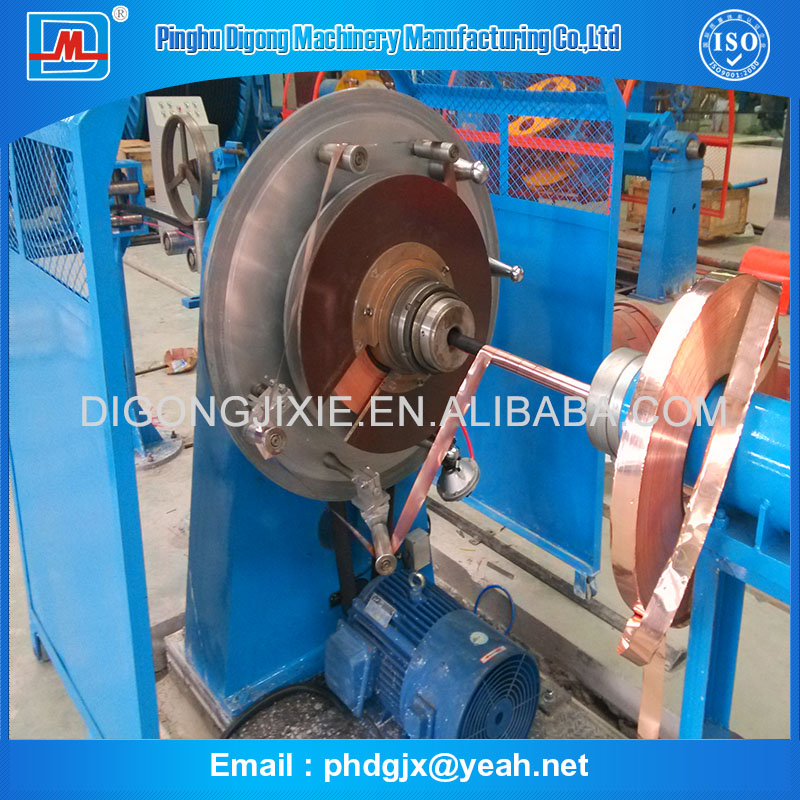

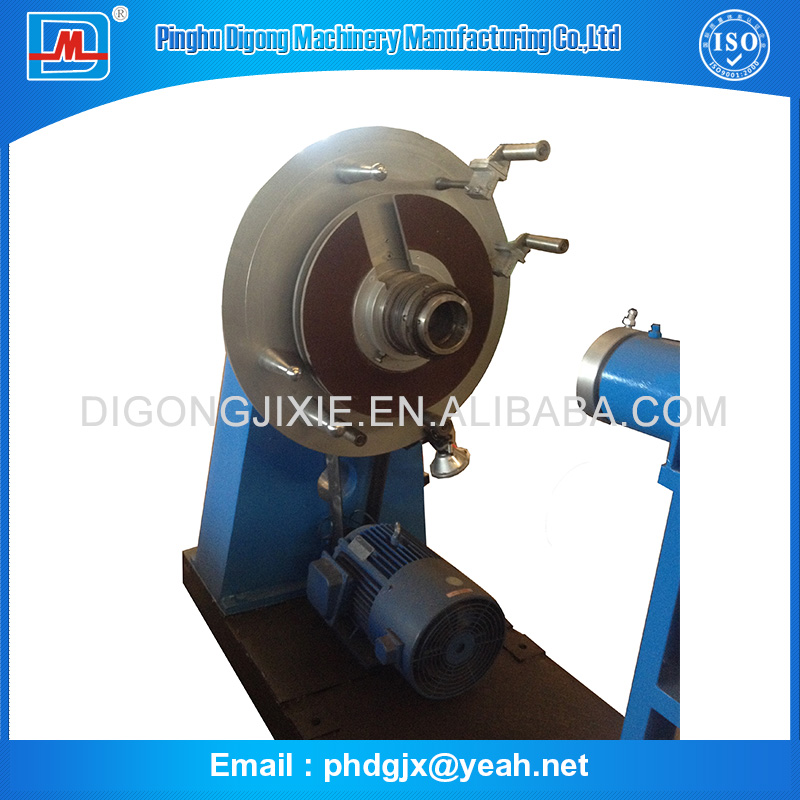

4 Φ630 concentric type copper taping head（11kw variable frequency motor）
 1set
5 Φ400/2 common taping head（11kw variable frequency motor）
 1set
6 1250kg caterpillar traction device（7.5kw variable frequency motor）
1set
7 Φ2500 shaft-less take-up and traversing stand
 1set
8 Electrical control system、transmission system, safety protection system and foundation bolt
 1set


三、Technology data：

1、Maximum cable diameter before screening ：                              Φ100mm

2、Speed of copper taping head：                                   303～455r/min

3、Pitch of copper taping head：                                         11～113 mm

4、Speed of common taping head：                                   303～455r/min

5、Pitch of common taping head：                                         11～113 mm

6、Maximum of haul-off force：                                         1250kg

7、Linear speed ：                                      4.84～34.27m/min

8、Pay-off reel：                                   PN1600～PN3150

9、Take-up reel：                                   PN1250～PN2500

10、Central height：                                       1000mm


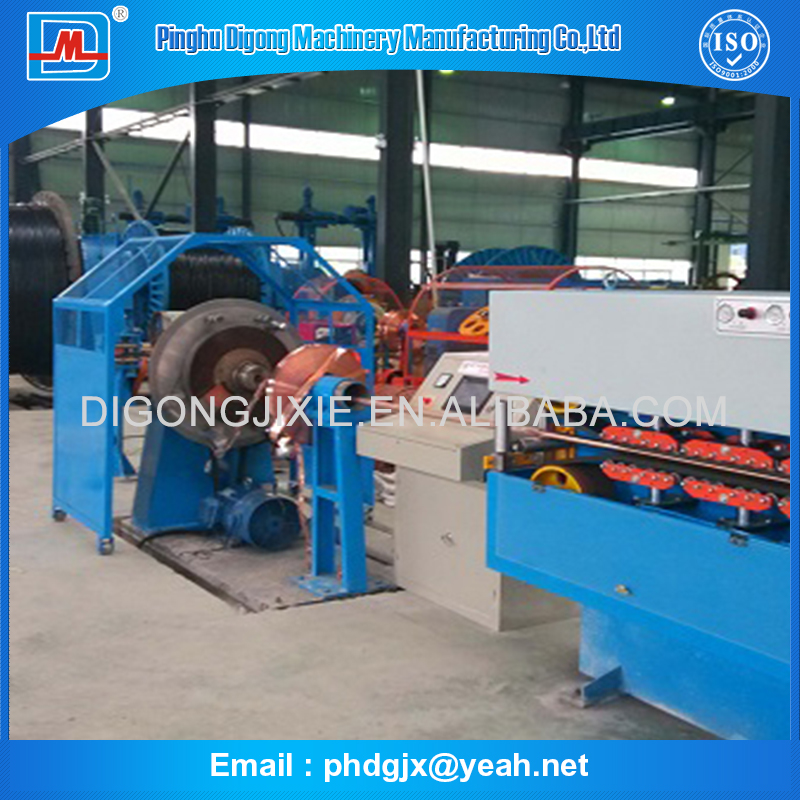

四、Main picture：

copper strip screening machine, copper strip shielding machine, 630 copper strip screening machine, high speed screening machine,
