cable armoring production line - 630mm high speed steel strip armoring machine
Share us

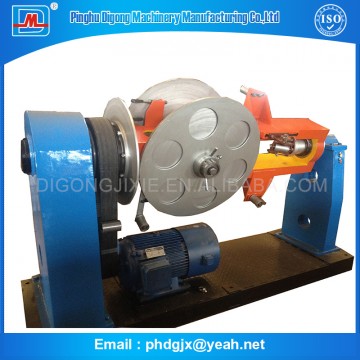

cable armoring production line - 630mm high speed steel strip armoring machine

Pinghu Digong
cable armoring production line - 630mm high speed steel strip armoring machine
cable armoring production line - 630mm high speed steel strip armoring machine

model: 630
structure: semi-tangent
MOQ: 1 set

Send Inquiry

Description

φ630 High Speed

Horizontal Type Semi-tangent Cable Taping Machine




一、Application：

Mainly used for steel tape armoring of various type of cables.


二、Componse：

1
φ2000 shaft-less pay-off stand
 1 set
2
 well-shaped wire guiding stand
 1 set
3
 horizontal meter counter
 1 set
4
 φ400/2 common taping head (11 kw variable frequency motor)
 1 set
5
 φ630/2 steel taping head(18.5kw variable frequency motor)
 1 set
6
 1250kg caterpillar traction device(7.5kw variable frequency motor)
 1 set
7
 φ2000 shaft-less take-up and traversing stand
 1 set
8
 electronic control and safety protection device
 1 set



三、Technology data：


1、maximum cable diameter of armoring:                    φ50mm

2、maximum taping speed:                                         450r/min

3、taping pitch:                                                            step-less

4、maximum ratating speed of armoring:                      380r/min

5、armoring pitch:                                                        step-less

6、maximum haul-off force:                                            1250kg

7、linear speed：                                                          35m/min

8、pay-off reel stand：                                             PN1250-PN2000

9、take-up reel stand:                                               PN1250-PN2000

10、motor of steel taping head:                                     18.5kw

11、motor of taping head: 11kw

12、haul-off motor：                                                       7.5kw

13、central height： 1000mm


四、Main pictures：

production line, cable production line, 630 armoring machine, steel strip armoring machine, cable armoring machine,
