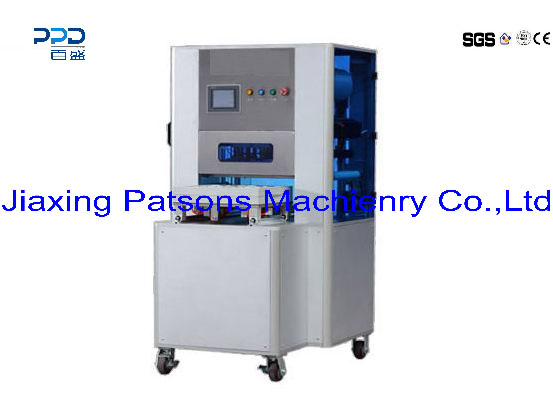

Semi automatic MAP container packaging machine

PPD-SMAP

MOQ: 1 1

Send Inquiry

Description

Modified atmosphere packaging equipment is widely used in packaging fresh food as meat, poultry, fish and fruit and vegetable,cooked meat,and bakery food etc.The food undertaken modified atmosphere packaging, become more and more popular among food proces

Modified atmosphere packaging equipment is widely used in packaging fresh food as meat, poultry, fish and fruit and vegetable,cooked meat,and bakery food etc.The food undertaken modified atmosphere packaging, become more and more popular among food process factory and the distributor because of keeping the original flavor,color,nutrition,and prolonging the shelf life. The modified atmosphere package food develops rapidly in the European,Asian,Australia and American market etc.

Features

It adopts combination of machine, electricity and Pneumatic, realize human and machine talk by programmed procedure controller( PLC touch screen),actions and control parameter can be set and amended by PLC, with easy control, and reliability, little problem;

High auto degree in the packaging machine, and high percentage of end products;

Main body adopts stainless steel, to ensure sanitary and safe food, according to food machine standard GB16798-1997;

Mould pattern can be set according to customer’s choice, with wide application range;

The gas mixer is exact (mixing air), so to ensure food fresh requirement.

How much higher is the cost of modified atmosphere packaging than that of vacuum packaging?

The packaging material of modified atmosphere packaging is the same to that of vacuum packaging, the cost will be increased as for the same vacuum packaging. The costs of carbon dioxide are the highest among threes gases, every high-pressure steel bottle of carbon dioxide has the pressure of 13-15Mpa, with the volume of about 40 liters and the gas weight of about 10kg when it is full of gas. It costs RMB30 to fill each steel bottle with gas. For instance, calculating all mixed gas by carbon dioxide, 1 liter of gas with pressure 0.1Mpa is consumed, its weight is about 3g and the cost is 0.009yuan<(30/10 x 1000) x 3>per liter, namely, when consuming 1 liter of gas with pressure 0.1Mpa,its cost is less than one cent RMB.

Technical parameter

Packaging speed 480PC/Min

Work power 220V/50Hz

Work pressure 0.6~0.8Mpa

Air exchanging rate 95~98

Air filling concise ≤2

Max consume power 4kw

Overall dimensions 1100x960x1620 L x W x H

Weight 400kg
