3 shaft silicon paper rewinding machine
Share us

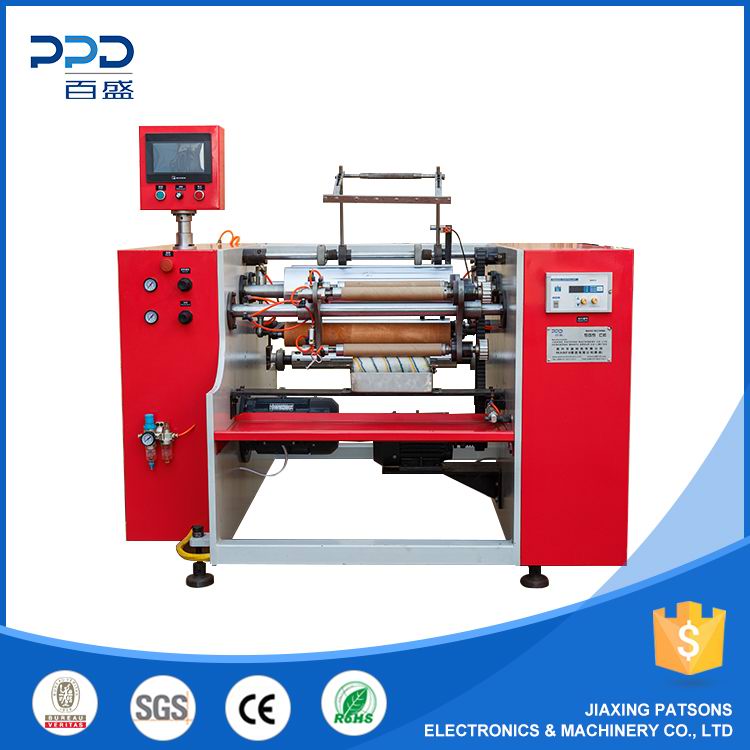

3 shaft silicon paper rewinding machine

PPD-3SHPF450

Send Inquiry

Description

3 shaft silicon paper rewinding machine for cost effective,user friendly production of foil roll and food paper roll etc.

3 shaft silicon paper rewinding machine is an ideal model for high speed rewinding of silicon paper,food wax paper,PE food wrap paper,food baking paper etc.

Automatic changing the paper core when the rewinding is finished,the gluing is by automatic,the unique design makes the production at very high rate among semi automatic rewinder models.

Mean while,it is multi-functional for production of aluminium hosue foil roll as value added.

Main data;

Mother roll width:max450mm

Mother roll ID:76mm

Mother roll OD:600mm

Baby roll width:max 450mm

Baby roll ID:25/35/38/40mm

Baby roll length:3,5,7,50,90meters

Speed:300m/min max

Power:3kw

Air need:0.3Mpa

Magnetic clutch:50Nm

Voltage:220/380/415/450v

Frequency:50&60hz

3 shaft silicon paper rewinding machine, food baking paper slitter rewinder, food wax paper roll rewinder,
