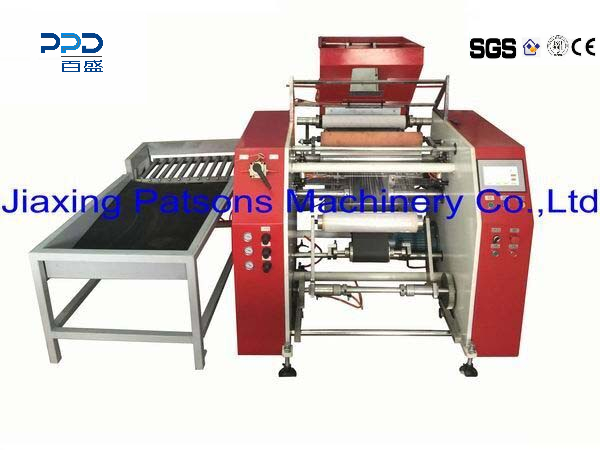

Hi Speed Stretch Film Rewinder
PPD-HSR500
Material: stretch film/cling film
Speed: max 1500m/min
Total power: 4kw
Description
High speed rewinder is Patsons latest film rewinding technology development,it is deisgned at 1500meter per minute for world top speed rewinding.
Machine is ideally designed for PE stretch film,cling film,and PVC cling film rewinding.
It is complied with PLC unit plus LCD tuch screen for user friendly,it required non-skilled operator to work on the machine.
One operator can run 3 machines at the same time.
Main data:
Material:stretch film/cling film
Unwind roll width:max 620mm
Unwind roll ID:3inch
Unwind roll OD:500mm
Rewind roll width:620mm
Rewind roll ID:1.5/2/3inch
Rewind roll OD:180mm/900mtrs
Speed:max 1500m/min
Total power:4kw
Air supply:0.2Mpa
Weight:1.2 M Ton
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
