Other packaging related equipment
Description

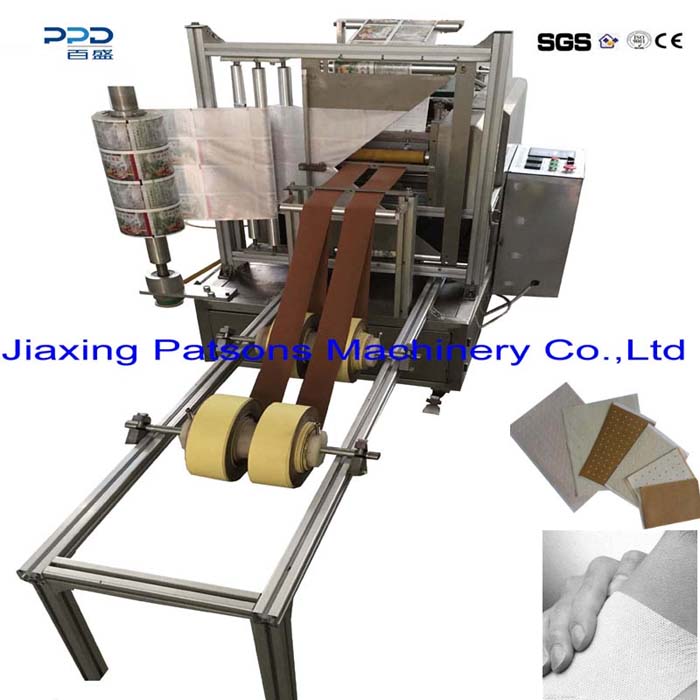

Plaster Sealing Making Machine adopts the latest Asian technology for manufacturing the differen plaster,widely use back pain,waise pain,neck pain for different area muscle pain.joint sour etc.
With PLC+LCD modern technology to control for fully automatic produciton.it is most for user friendly,high production volumn,less labor involved in the production,one person can operate the machine,meantime,the operator can packing the finsihed products.
Main technical data:
Material:Plaster pad
Pack Material: Foil PE Paper PET OPP
Plaster Size: 30-200× 30-200mm at option
Plaster Roll OD:max320 mm，
Plaster Roll ID: 76mm
Plaster Roll Width≤200mm
Pack Material Diameter:max320 mm，
Pack Material Width max920 mm
Production Speed:100-120 pack/min
Package Size:220mm (L) × 155mm(W)
Pack Material ID:3inch
Voltage:220v,50/60HZ,single phase
Total Power:2.6kw
Weight:500KG
Machine size: 2500x1000x1500mm L*W*H
Pacaging size:2800x1400x1600mm L*W*H
