Description

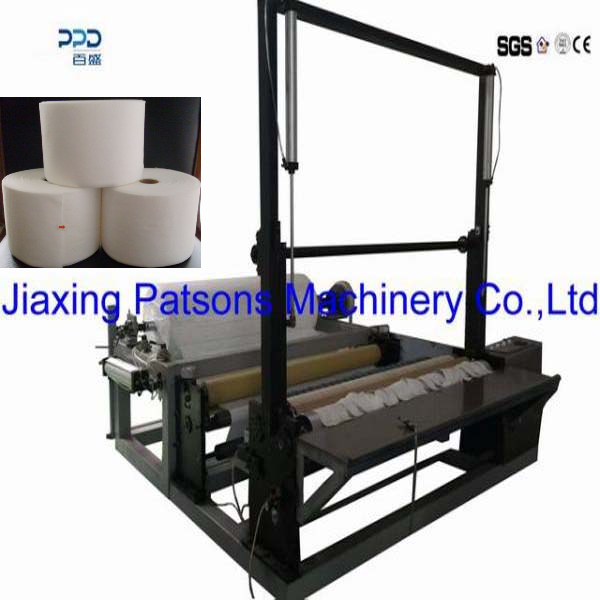

Nonwoven Cloth Roll Slitter is mainly used for slitting and rewinding non woven jumbo roll into small roll with different size with or without perforation line.
It is high speed and running smooth reliable operation etc,it suits for sunplace nonwoven,niddle punch non woven,PP nonwoven cloth etc.
Production Process:
Jumbo roll loading---Slitting into small size- Poeration option-Rewinding small width roll- Unload finished roll.
Main Specs:
Raw material width:1300/1800/2500/2700/3500mm
Raw material size: Φ≤ 1200-1500mm
Applicable materials: 25-350 - g / ㎡ non-woven fabrics
Paper core diameter of the raw material : Ø 76 mm
Paper core diameter of the product roll: Ø 76 mm option
Prodution speed: 120-300 m/min
Power:3.5/7.5 kw
Voltag: 220/380/415/450 v
Dimension: 3200 x 2660-4600 x 2300 mm (L*W*H)
Machine weight: 3500-8500 kg
Read More
