CLY1000-1250 series multi-function high speed planetary cage type laying-up machine
Share us

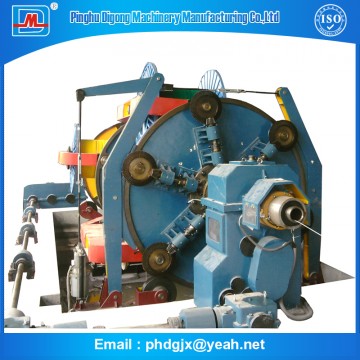

CLY1000-1250 series multi-function high speed planetary cage type laying-up machine

Pinghu Digong
CLY1000-1250 series multi-function high speed planetary cage type laying-up machine
CLY1000-1250 series multi-function high speed planetary cage type laying-up machine

model: φ1000,1250
maximum cable diameter: ≤80mm
MOQ: 1 set

Send Inquiry

Description







                                         CLY1000-1250 Series

                         Planetary cage type laying-up machine



Application

Mainly used for cabling 3-core,4-core,and 5-core large cross-section power cables,back-twisting stranding of round cables, and non-back-twisting stranding of fan cables.

Component

Number Designation Quantity
1 rear cradle or pay-off stand 1set
2 stranding cage 1set
3 die holder 1set
4 common taping head 1set
5 steel taping head 1set
6 meter counter 1set
7 haul-off device 1set
8 take-up and traversing stand 1set
9 electronic control system and safety protection device 1set























Technology Data

Designation Unit       CLY1000/1+1+3

CLY1000/1+4
       CLY1000/1+6

      CLY1250/1+1+3

CLY1250/1+4
       CLY1250/1+6

Section of single root cable core mm 10-185 10-240
Maximum diameter of laying-up mm φ75 φ80
Speed of stranding cage rpm 14.11-33.62 14.11-33.62
Pitch of laying-up mm 210-2235 293-3121
Taping speed rpm 188-419 188-419
Taping pitch mm 17-168 24-234
Armoring speed rpm 161-369 161-369
Armoring pitch mm 19-196 27-274
Traction wheel mm φ2000 single wheel φ2000 single wheel
Main motor power kw 30 30
Take-up reel stand mm PN1000-PN2000 PN1250-PN2500


Type of back-twisting :


laying-up machine, high speed laying-up machine, planetary cage type laying-up machine, planetary laying-up machine, multi-function laying-up machine,
