Wrapping Machinery
Description
3 Shaft aluminium foil rewinding machine is remoulded on the two shaft rewinding machine .Because of the additional shaft,it works more efficiency than two shaft.
Machine is used to rewind do aluminium foil roll,silicon paper roll,baking paper roll,wax paper roll from jumbo roll to several small roll with same width.
Features:
1. Machine has control system consisting of PLC, human-computer interface and
frequency changer. So this machine has high level of automation.
2. The human-computer interface supports the manual operation and has the
displayer to display information.
Main data:

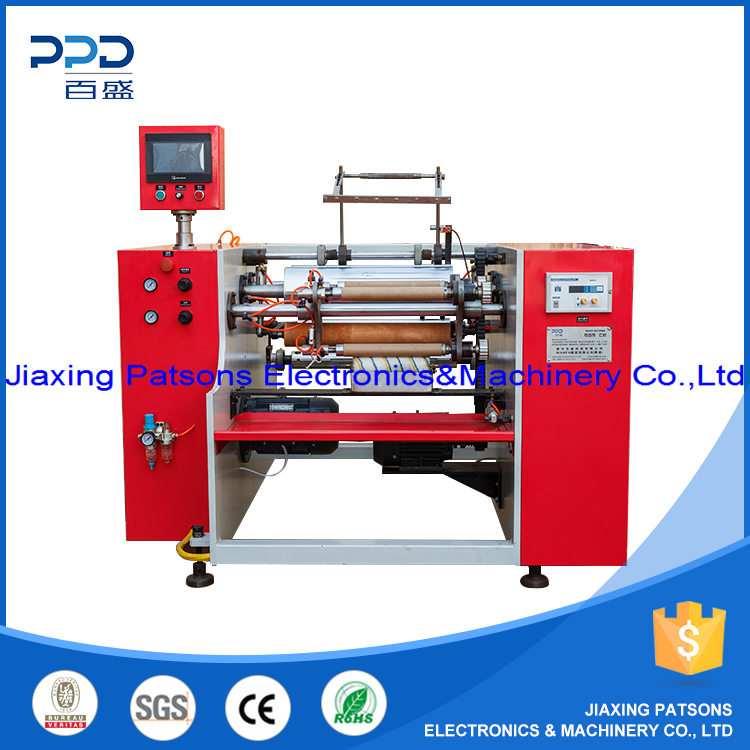

Name:3 Shaft aluminium foil rewinding machine
Model:PPD-3SHAF
Jumbo roll width:max450mm
Rewind roll width:max450mm
Jumbo roll OD:300mm
Rewind roll length:5-200mm option
Jumbo roll ID:76mm/152mm option
Rewind roll ID:30/35/38/40mm
Deaisgn speed:175m/min
Packing size:1900x1800x1650mm
Weight:1050kg
NOTE:Any different size can be customized.
