Description

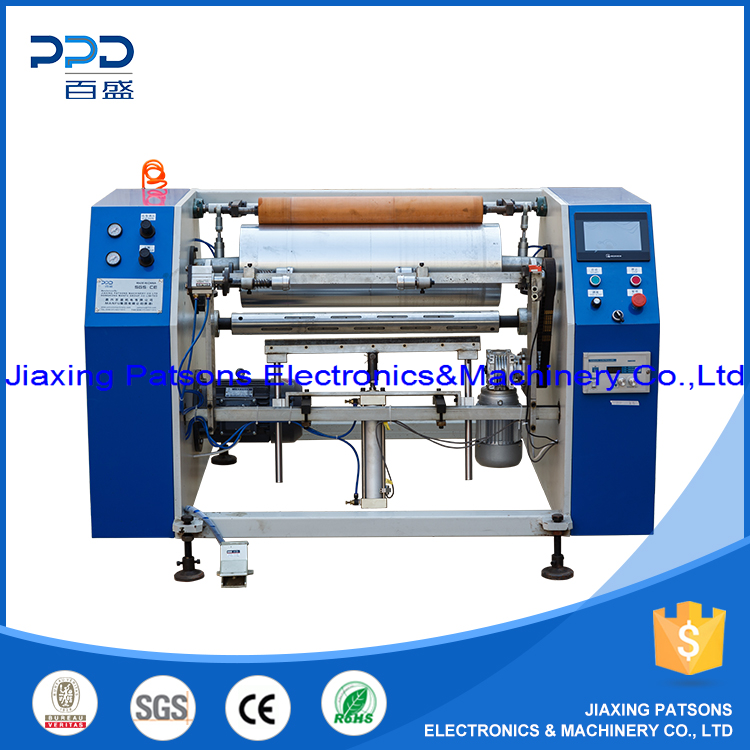

Aluminium foil cling film rewinding machine is multi-purpose model for both aluminium house foil roll and cling film roll rewinding.
Machine is controlled by PLC programmer,colorful touch screen for automatic exchange the paper core shaft,automatic stop when reach the setting length,it isvery easy to operate.
This model adoptes surface rewinding method,it can rewind small length and large length,like 5m,10m,50m,100m,200m,300m or more to meet different customers’ needs.
Main technical data:
Name: Aluminium foil cling film rewinding machine
Model:PPD-AFCF450
Rewind material:aluminium foil,cling film
Mother roll core diameter:3/6inch
Mother roll width:450mm
Mother roll OD:450mm
Rewinding roll width:max450mm
Rewinding roll paper core ID: 35/38/40mm option
Rewinding roll length:3-300meters option
Design speed:300rpm/min
Total power:2.5kw
Voltage:220/240/380/415/450v
NOTE:Different sizes can be customized.
