Stranding machines
cable making machine - CLY1600-2000 cable laying-up machine
Pinghu Digong
maximum cable diameter: ≤1100mm
model: 1600,2000
drive type: groundshaft
MOQ: 1 set
Description
Cable making machine
CLY1600-2000 cable laying-up machine
Application：
Mainly used for laying-up 3-core,4-core and 5-core large cross-section power cables,back-twisting stranding of round cables,and non-back-twisting stranding of fan cables.
Components：
Rear cradle, stranding cage, die holder, taping head, steel taping head, meter counter, haul-off device, take-up and traversing stand, electrical control system and safety protection device
Characteristic:
1、According to the technological requirements of the cable, stranding cage cradle protected electric pre-twist. In the non-stop state, each cradle can separately adjust outlet angle.
2、Cradle is fully enclosed structure, use electric retractable top, and drive by separate motor.
3、Changing stranding cage gearshift can realize the conversion of non-back-twisting and back-twisting of stranding cage.
4、Stranding cage is supported by dual-riding wheels, large-aligning bearing is used for rear support which make stranding cage operate steady and with stand large cross-section cables torsion.
5、The whole machine and multiple parts use our company patented design, with reasonable product structure, high mechanical strength, and stable operation.
6、Our company introduces personlized and customized products to meet all the customer needs.
Main technology data：
Designation
Unit
CLY1600/1+1+3
CLY1600/1+4
CLY2000/1+1+3
CLY2000/1+4
section of single root cable core
mm
16-300
25-400
maximum diameter of laying-up
mm
φ100
φ110
speed of stranding cage
rpm
5.76-13.1
5.76-13.1
pitch of laying-up
mm
515-5365
599-6252
taping speed
rpm
166-369
166-369
taping pitch
mm
18-168
21-217
armoring speed
rpm
118-270
118-270
armoring pitch
mm
25-262
29-305
outlet speed
m/min
6.74-30.90
7.85-36.01
main motor power
kw
45
45
take-up reel
mm
PN1600-PN3150
PN1600-PN3150

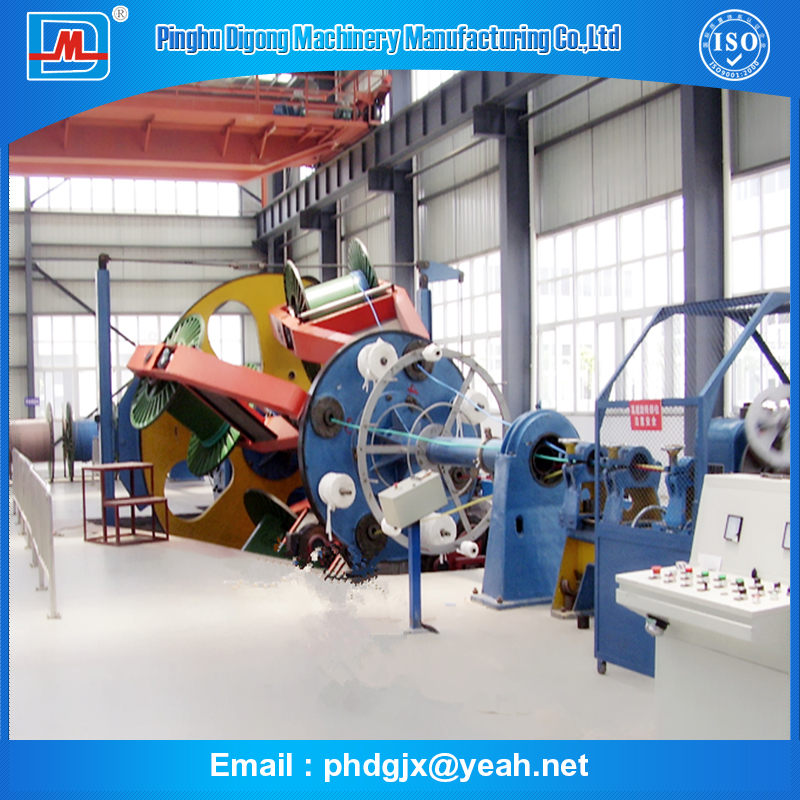

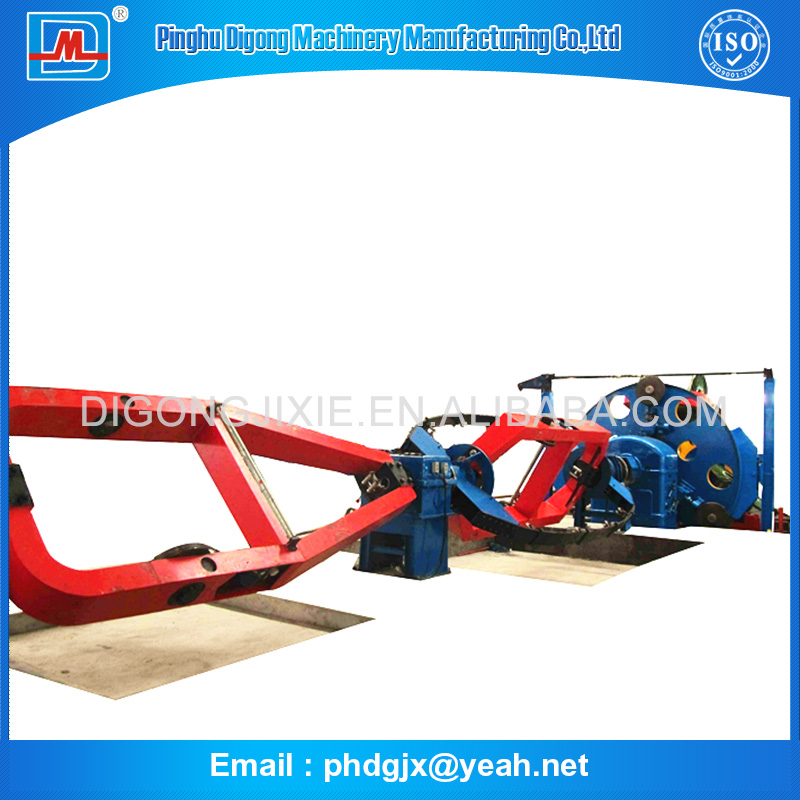

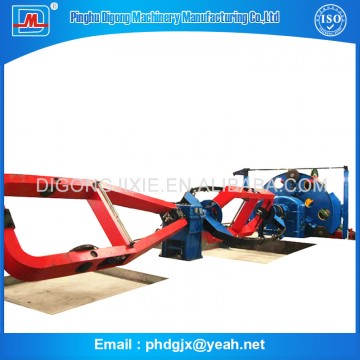

Pictures：
