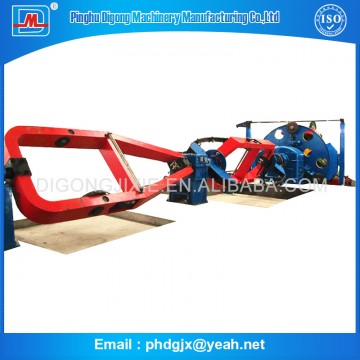

good quality cable equipment - CLY1600/1+1+3 cradle type cabling machine

Pinghu Digong
good quality cable equipment - CLY1600/1+1+3 cradle type cabling machine
good quality cable equipment - CLY1600/1+1+3 cradle type cabling machine

model: CLY1600/1+1+3
drive type: groundshaft
Maximum diameter for cabling: Φ95mm
MOQ: 1 set

Send Inquiry

Description

Cabling Equipment

CLY1600/1+1+3  Cradle Type Cabling Machine


Product application

Mainly used for cabling and armoring of various kinds of round and  sector shaped cables such as three-core, four-core, fiver-core and “4+1”core,“3+2”core.

Product Pictures
Product characteristics

1、According to the technological requirements of the cable,stranding cage cradle proceed electric pre-twist. In the non-stop state,each cradle can separately adjust outlet angle.

2、Changing stranding cage gearshift can realize the conversion of non-back-twisting and back-twisting of stranding cage.

3、Stranding cage is supported by dual-riding wheels, and it runs steady.

4、The whole machine and multiple parts use our company patented design, with reasonable product structure, high mechanical strength, and stable operation.

Product  components

1.     1＋1 rear cradle 1 set

2.     Φ1600/3B stranding cage (non-stop electric preset back twist)  1set

3.     Dual die holder                                   1set

4.     Φ400/2common taping head(with shared base）           1set

5.     Φ800/2semi-tangent steel taping head (with shared base）    1set

6.     45kw variable frequency motor and main drive gearbox system  1set

7.     Vertical meter counter                                     1set

8.     2500kg caterpillar-traction device with strengthen 27-step gearbox  1set

9.     Φ3150 shaft-less take-up and traversing                       1set

10.    Electrical control system、transmission system, safety protection system and foundation bolt   1 set

Technical parameters

1. Section of single root cable core：              10~300mm²

1. Maximum diameter for laying-up：               Φ95mm

2. Rotating speed：                            5.76～13.10r/min

3. Laying-up pitch：                             522～5448mm

4. Lapping speed：                           166～369r/min

5. Lapping pitch：                             19～190mm

6. Steel tape speed：                          118～270r/min

7. Steel tape pitch：                             25～266mm

8. Linear speed ：                           6.84～31.38 m/min

9 .Real cradle：                              PN1600/1+1B

10.Specification of cradle in cage：             PN1600/3B

11.Take-up bobbin size：                     PN1600～PN3150

12.Main motor power：           45kw variable frequency motor

13.Central height：                            1000mm
