JLY400-500 series high speed planetaty cage type stranding machine
Share us

JLY400-500 series high speed planetaty cage type stranding machine

Pinghu Digong

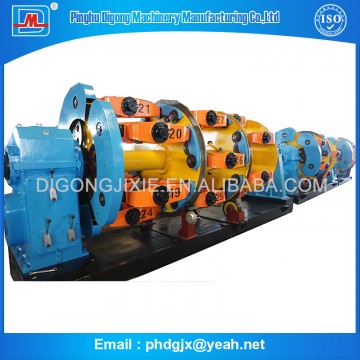

JLY400-500 series high speed planetaty cage type stranding machine
JLY400-500 series high speed planetaty cage type stranding machine

model: 400 ,500
drive type: groundshaft
single wire diameter: Φ0.8-φ8.0mm
MOQ: 1 set

Send Inquiry

Description

                                                  JLY400-500 series

                         high speed planetaty cage type stranding machine



Product application

Mainly used for cabling various control cables, rubber cables, signal cables,etc. Also apply to flexible conductors stranding.

Product Pictures
Product characteristics

1.Stranding cage is supported by non-riding wheel, with full gear back-twisting. Spindle adopts overall thick-walled seamless steel pipes, and respectively supported by stranding cage gearbox and large bearing in the front and rear. With high speed, low noise and stable operation.

2.Cradle support uses double bearings, and it is stable and reliable.

3.Cradle adopts forms of worm gear top, with electric or pneumatic hanging side, with self-locking function. It is convenient and safe.

4.Stranding cage as a whole has a chassis and adopts pneumatic brake. It is stable and reliable.

Product  components

Pay-off stand , segmented stranding cage , die holder , taping head device , steel taping head device , meter counter , haul-off device , take-up and traversing stand , electronic control and safety protection device.

Technical parameters




Product description
