Stranding machines
cable machine - JLY630 series planetary strander
Pinghu Digong
single wire diameter: φ0.8-10mm
model: 630
drive type: groundshaft
MOQ: 1 set
Description
Cable Machine
JLY630 series planetary strander
Application：
Mainly used for cabling various control cables, signal cables and special cables, etc.
Components：
Pay-off stand , segmented tranding cage, die holder, taping head, steel taping head, meter counter, haul-off device, take-up and traversing stand, electrical control system and safety protection device
Characteristic:
1、Stranding cage is supported by non-riding wheel, with full gear back-twisting .Spindle adopts overall thick-walled seamless steel pipes, and respectively supported by stranding cage gearbox and large bearing in the front and rear. With high speed, low noise and stable operation.
2、Winch is processed by thick steel plate well-boring , with high precision. Winch connected the spindle by metallurgical machinery expansion sleeve which are safe and reliable.
3、Stranding cage as a whole has a chassis, and adopts pneumatic brake. It is clean and environmentally friendly.
Main technology data：
Designation
Unit
JLY630/6+12
JLY630/6+12+18
single wire diameter
mm
φ0.8-φ10
φ0.8-φ10
speed of stranding cage
rpm
35-83
35-83
pitch of laying-up
mm
88-937
85-901
taping speed
rpm
188-419
188-419
taping pitch
mm
17-174
17-174
armoring speed
rpm
162-371
162-371
armoring pitch
mm
20-202
19-195
outlet speed
m/min
7.33-32.78
7.05-31.53
main motor power
kw
30
45
take-up reel
mm
PN1000-PN2000
PN1000-PN2500

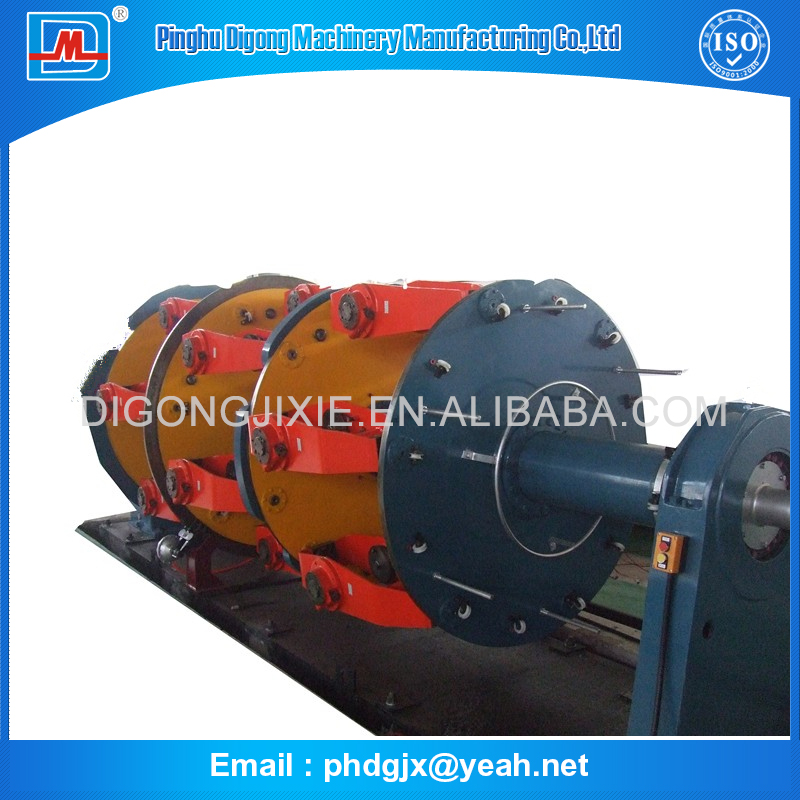

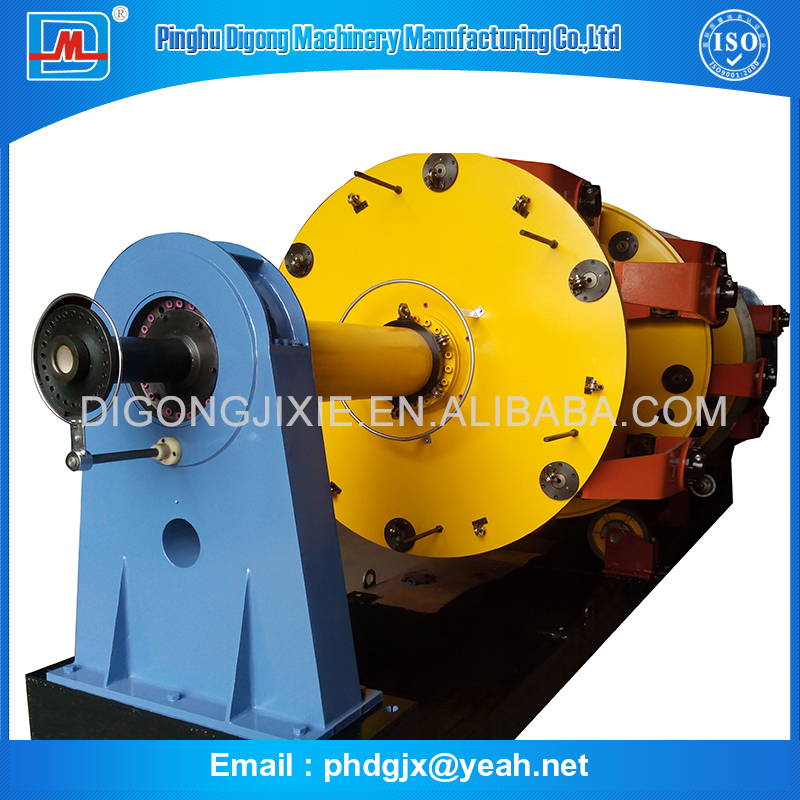

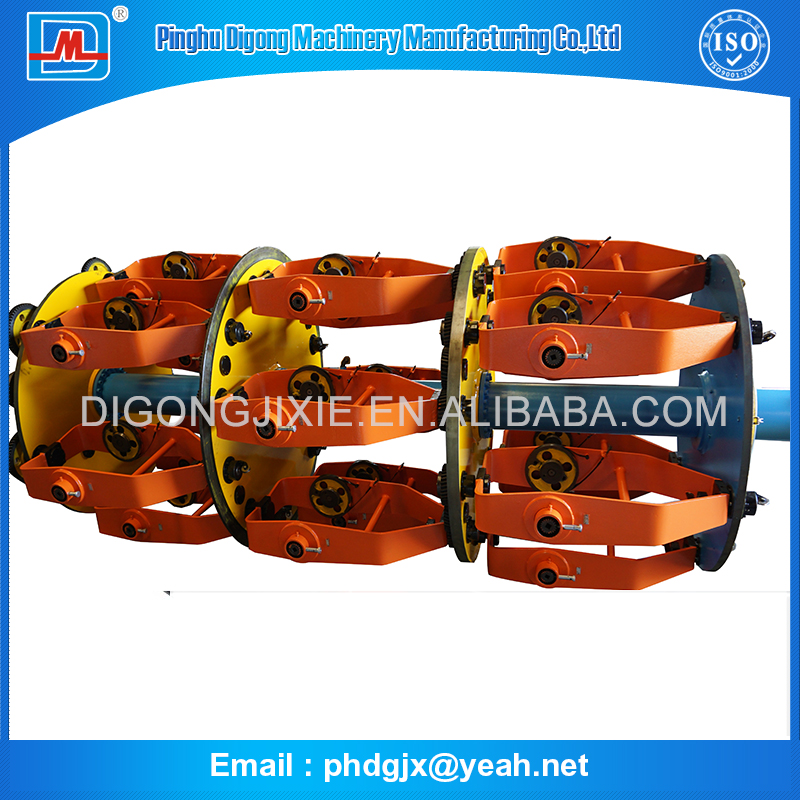

Pictures：
strander , planetary strander , planetary strander machine, cable strander, planetary cable strander,
