630-900mm series cable armored steel tape armoring machine
Pinghu Digong
maximum cable diameter: φ120mm
model: 630、710、800、900
drive type: groundshaft
MOQ: 1 set
Description
φ630-φ900 Series
Cable Armored Steel Tape Armoring Machine
Application：
Mainly used for steel tape armoring of various types of cables.
Components：
Pay-off stand , segmented tranding cage, die holder, taping head, steel taping head, meter counter, caterpillar traction device, take-up and traversing stand, electrical control system and safety protection device
Characteristic:
Steel tape device is supported in the front and rear, use rolling steel armored structure. Armored rotating body uses thick-walled seamless steel pipe. Steel tape outlet uses quick lead screw locking device. It is simple and safe.
.
Main technology data：
Designation
Unit
φ630
φ710
φ800/2
φ900/2
Cable diameter
mm
φ90
φ90
φ120
φ130
Taping speed
rpm
189-421
189-421
189-421
189-421
Taping pitch
mm
18-184
18-184
18-184
18-184
Armoring speed
rpm
162-371
162-371
118-271
118-271
Armoring pitch
mm
20-215
20-215
28-295
28-295
Caterpillar traction
kg
1250
1250
1600
2000
Outlet speed
m/min
7.58-34.78
7.58-34.78
7.58-34.78
7.58-34.78
Main motor power
kw
18.5
18.5
22
22
Take-up reel stand
mm
PN1000-PN2000
PN1250-PN2500
PN1600-PN3150
PN1600-PN3150

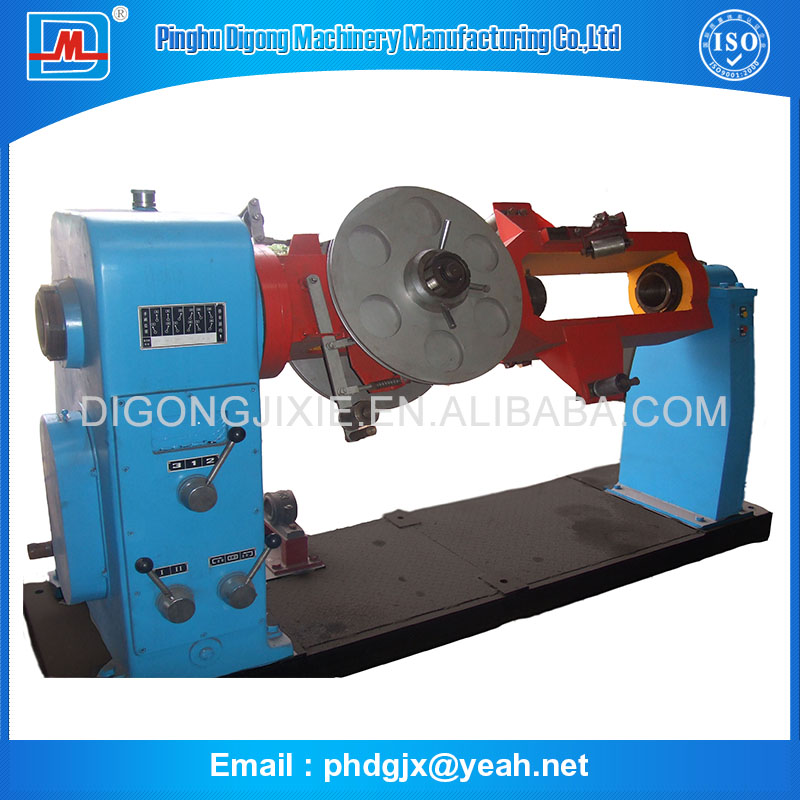

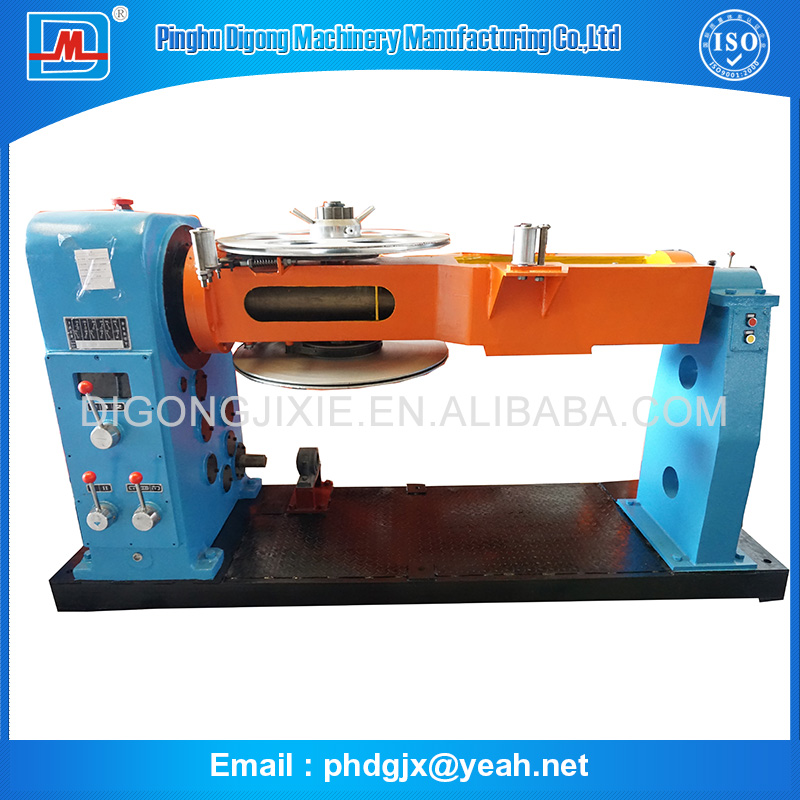

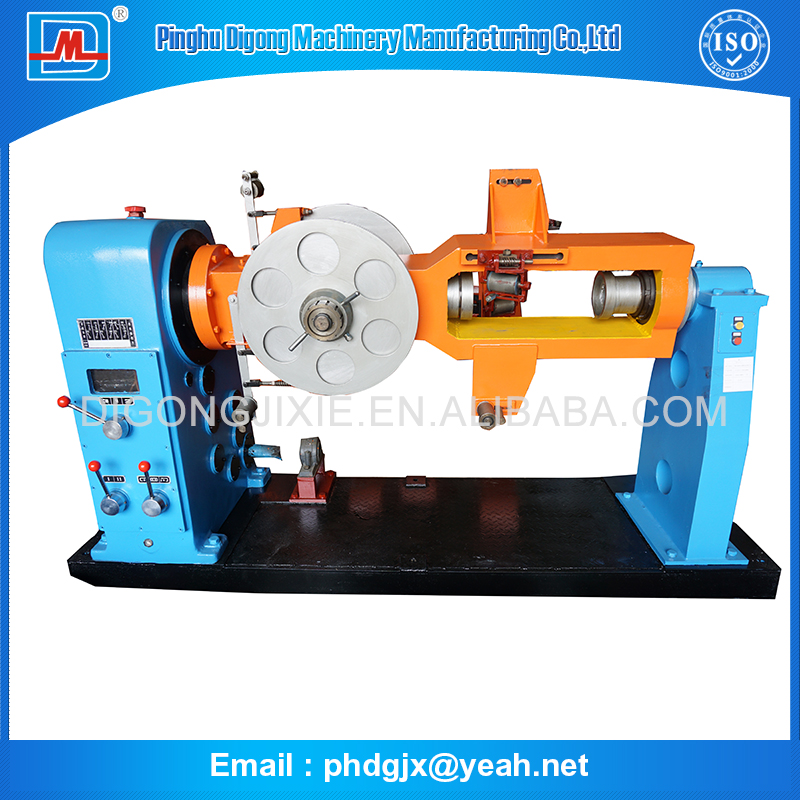

Pictures：
