500mm high speed cable mica horizontal taping machine

Pinghu Digong
500mm high speed cable mica horizontal taping machine
500mm high speed cable mica horizontal taping machine

name: high speed maice taping machine
maximum taping speed: 500rpm
drive type: separate motor
MOQ: 1 set

Send Inquiry

Description

500mm High Speed Cable Mica Horizontal Taping Machine

(separate motor driven)

Application：

Mainly used for the non-metal taping of all kinds of cables,and by parts adjustment, it also can be used for manufacturing the armor for copper tape screening and thin copper tape.


Components：

Number Designation Quantity
1 Φ1600 shaft-less pay-off stand 1 set
2 Well-shaped wire guiding stand 1 set
3 Horizontal meter counter 1 set
4 Φ500 concentric taping head（separate motor control） 1 set
5 Φ500/2 semi-tangent steel taping head（separate motor control） 1 set
6 1250kg caterpillar-tractor device（separate motor control） 1 set
7 Φ1600 shaft-less take-up and traversing) 1 set
8 Electrical control system、transmission system, safety protection system and foundation bolt 1 set

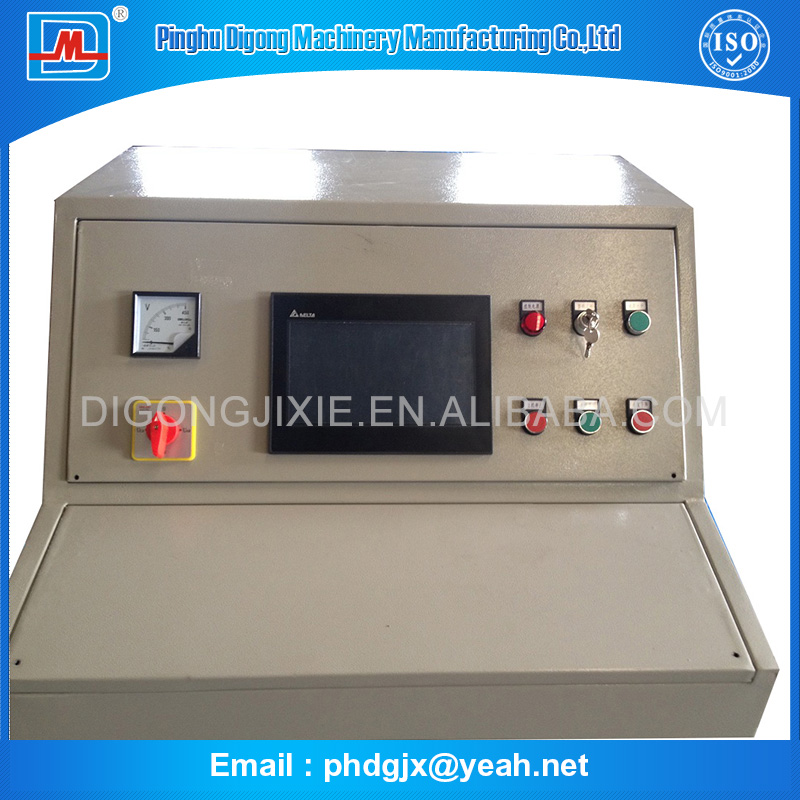

9 Touch screen and PLC 1 set


Main technology data：

1、Maximum diameter of cable before taping： Φ55mm

2、Lapping speed：（Electronic Gearbox） 0～850r/min

3、Steel taping speed：（Electronic Gearbox） 0～505r/min

4、Maximum haul-off force： 1250kg

5、Linear speed： 10～44m/min

6、Pay-off bobbin size： PN800～PN1600

7、Take-up bobbin size： PN800～PN1600

8、Central height： 1000mm

Concentric taping head:

1、Outer diameter of the hole： Φ59mm

2、 Size of tape reel： Φ500×Φ75×（20～50）mm

3、Number of tapes： 10B

4、 Taping material：mica tape, polyester tape,non-woven tape, plastic composite tape etc.

5、 Motor： 4KW frequency conversion

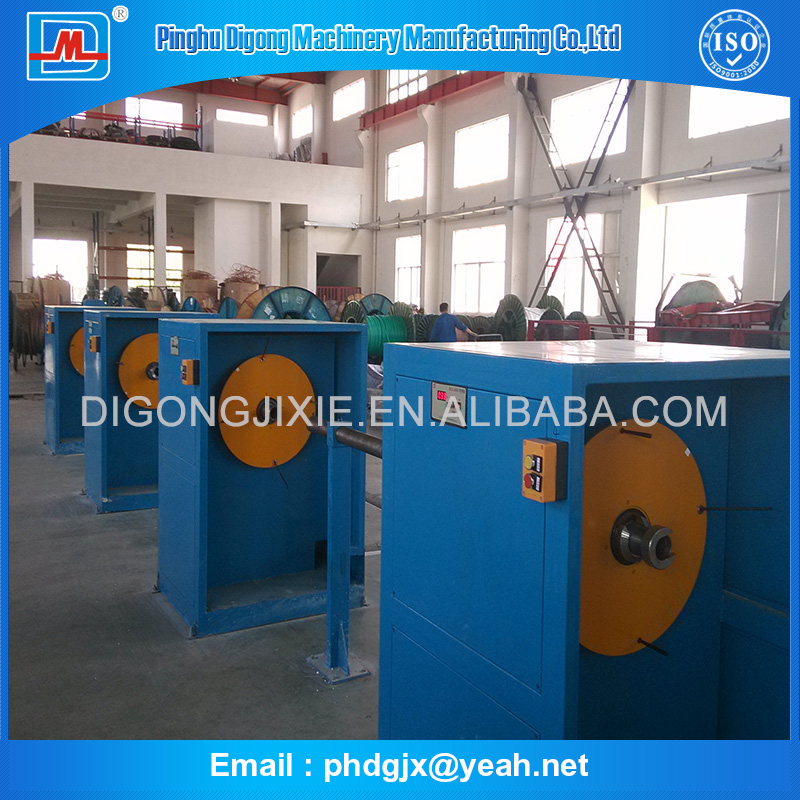

Pictures：


mica taping machine, cable mica taping machine, high speed mica taping machine, mica horizontal taping machine,

Read More

Previous

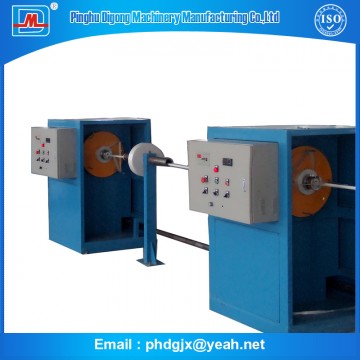

separated motor multi-unit high speed concentric horizontal type cable taping machine...
