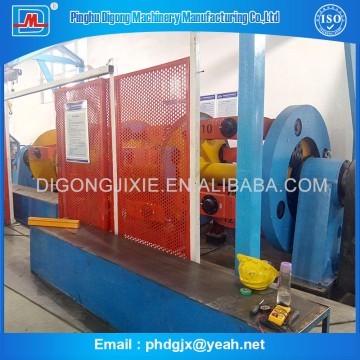

JLY710/8+16 high speed stranding machine (driven by independent motor)
Share us

JLY710/8+16 high speed stranding machine (driven by independent motor)

Pinghu Digong
JLY710/8+16 high speed stranding machine (driven by independent motor)
JLY710/8+16 high speed stranding machine (driven by independent motor)

dirve type: motor
model: JLY710/8+16
maximum laying-up diameter: 45mm
MOQ: 1 set

Send Inquiry

Description

JLY710/8+16 high speed stranding machine

(driven by independent motor)

(click the picture, to see the video）




一、 The equipment usage：

Mainly used for stranding steel-cored aluminium wires, bare copper wires and bare aluminium wires.They may also be used for cable laying-up of rubber sheathed cables, multi-strand plastic cables and all kinds of communication cables.



二、 The equipment componse：

1 Φ710 shaftless pay-off stand 1 set
2 Φ710/8 B stranding cage（45KW motor control） 1 set
3 Φ710/16 B stranding cage（75KW motor control） 1 set
4 single wire die holder 1 set
5 Φ400/2 semi-tangent taping head（11KW motor control） 1 set
6 Φ400/6 common taping head（11KW motor control） 1 set
7 horizontal meter counter 1 set
8 Φ2000 single active dual wheel traction device（37KW motor control) 1 set
9 Φ2000 take-up and traversing stand 1 set
10 safety protection system and foundation bolt 1 set
11 Electrical control system、PLC 、variable frequency motor  1 set



三、 Specifications：

1. Single wire diameter： (copper wire)：Φ1.0～Φ5.0mm ;   (insulate wire)：Φ2.0～Φ8.0mm

2. Laying-up diameter： ≤45mm

3.  Maximum rotating speed of 8 B stranding cage： 80r/min

4.  8 B laying-up pitch： 72～855mm

5.  Maximum rotating speed of 16 B stranding cage： 71.4r/min

6.  16 B laying-up pitch： 87～1039mm

7. Maximum speed of taping head： 454.5 r/min

8. Taping pitch： 16～175mm

9. Linear speed： 6.23～31.13m/min

10.Specification of cradle in cage： PND630

11. Central pay-off reel： PND500～PND630

12.Take-up bobbin size： PN1250～PN2000

13. Central height： 1000mm





四、 Main  foundation drawings：



五、 Main picture：
