wire cable making machine - JLY400/12+18+24 planetary strander

Pinghu Digong
wire cable making machine - JLY400/12+18+24 planetary strander
wire cable making machine - JLY400/12+18+24 planetary strander

model: JLY400/12+18+24
drive type: groundshaft
brake form: pneumatic brake
MOQ: 1 set

Send Inquiry

Description

JLY400/12+18+24 Planetary strander







一、 Application：

 Mainly used for cabling various control cables,signal cables and special cable and also apply to flexible conductor stranding.The parts modified also can undertake steel wire armored, copper wire screening.


二、 Componse：

1 Φ1250 shaft-less pay-off stand 1 set
2 φ400/12 B stranding cage, including single die holder 1 set
3 φ400/18 B stranding cage, including single die holder 1 set
4 φ400/24 B stranding cage, including single die holder 1 set
5 Φ400/2 common taping head 1 set
6 45KW variable frequency motor and main drive gearbox system 1 set
7 Horizontal meter counter 1 set
8 Φ1600 dual wheel capstan with strength 54-step gearbox 1 set
9 Φ2000 shaft-less take-up and traversing 1 set
10 electrical control system, transmission system, safety protection system and foundation bolt 1 set


三、 Technology data：

1. single wire diameter： (aluminium wire、copper wire)Φ1.2～Φ3.5mm

                                    (insulate wire)Φ2.0～Φ8mm

2. rotating speed： 36.42、 44.23、 51.76、  ; 62.85、 71.48、 86.79r/min

3. laying-up pitch： 43～918  mm

4. taping speed： 178～396 r/min

5. taping pitch： 9～188 mm

6. linear speed： 3.74～33.43m/min

7. specification of cradle in cage： PN500或PND500

8. central pay-off stand： PN630～PN1250

9. take-up bobbin size： PN1000～PN2000

10.main motor power： 45KW  DC

11.central height： 1000mm


四、 Characteristic:

1 Not only it used for wire stranding and laying-up,but also it used for armoring and screening.
2 Back-twisting type: all gear back-twisting.
3 Stranding cage is supported by non-riding wheel. Spindle adopts overall thick-walled seamless steel pipes,and respectively supported by stranding cage gearbox and large bearing in the front and rear.
4 Winch is procedded by thick steel plate well-boring. Winch connected the spindle by metallrugical machinery expansion sleeve.
5 Stranding cage as a whole has a chassis, and adopts pneumatic brake.

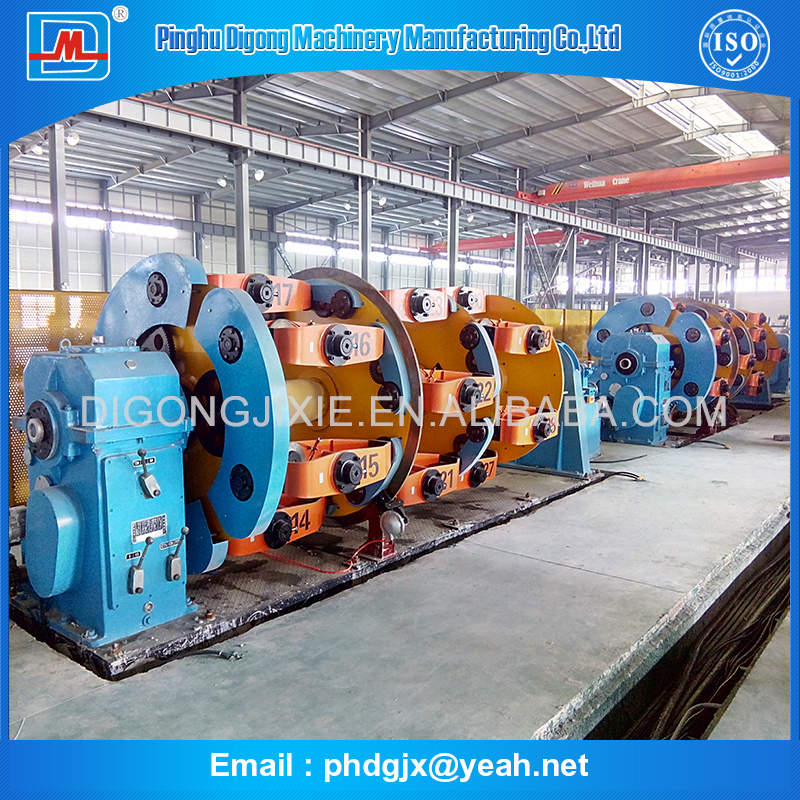

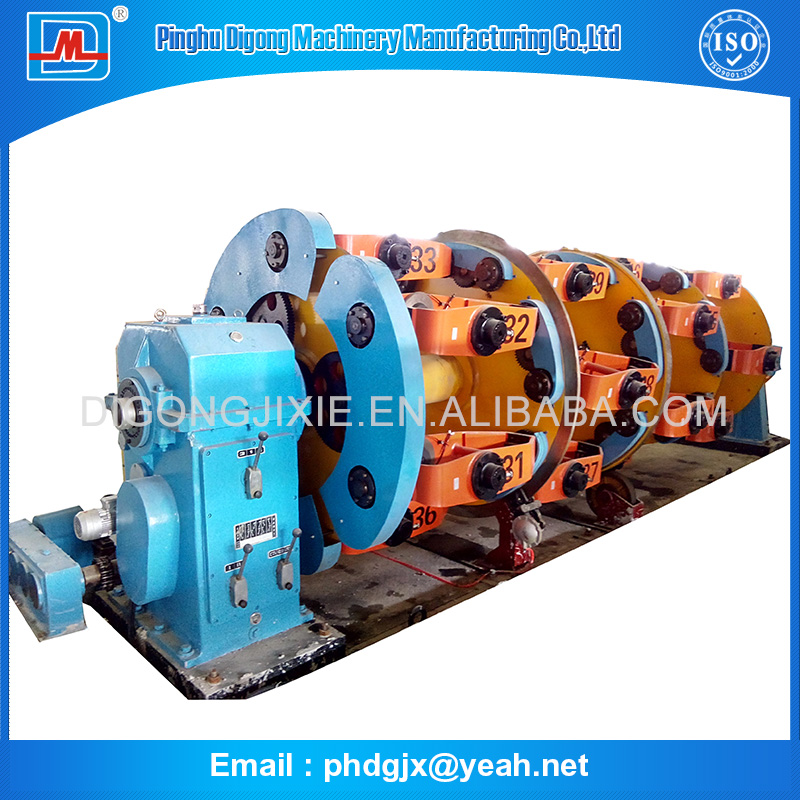

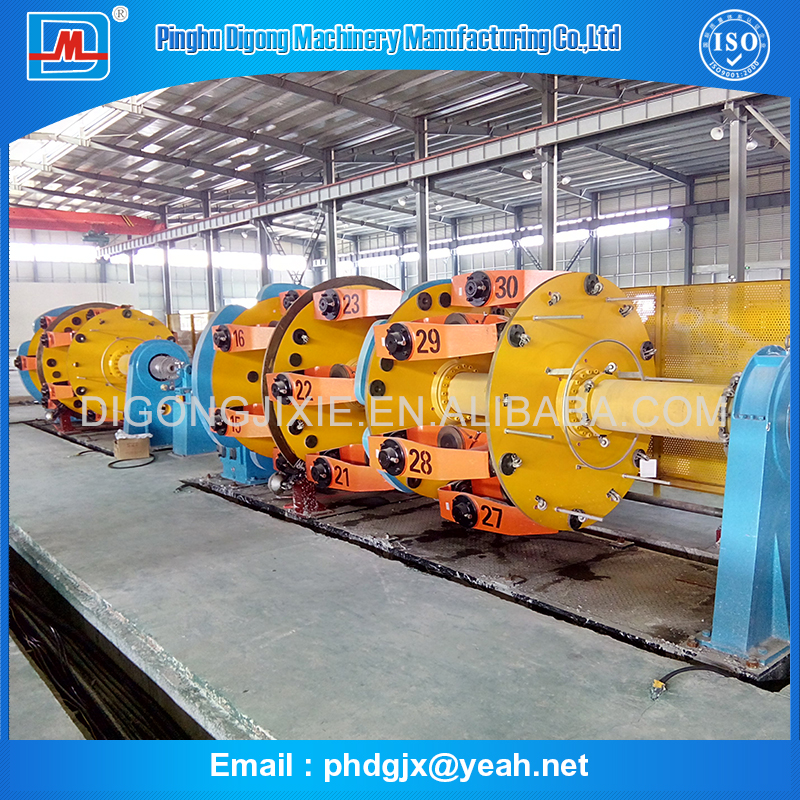

五、 Main pictures：

strander, strander machine, planetary strander, wire strander. cable strander, wire making machine,
