JLY500/6+12 high rotating speed planetary cage type copper wire and aluminium wire stranding machine
Share us

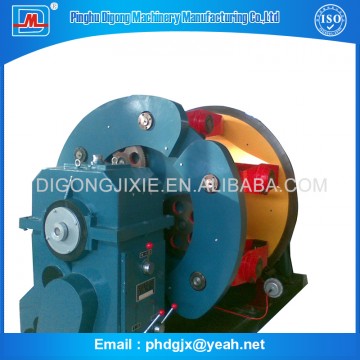

JLY500/6+12 high rotating speed planetary cage type copper wire and aluminium wire stranding machine

Pinghu Digong
JLY500/6+12 high rotating speed planetary cage type copper wire and aluminium wire stranding machine
JLY500/6+12 high rotating speed planetary cage type copper wire and aluminium wire stranding machine

model: JLY500/6+12
drive type: groundshaft
cable diameter: ≤30mm
MOQ: 1 set

Send Inquiry

Description

         JLY500/6+12 planetary cage type stranding machine

          (copper wire,aluminium wire,insulate wire)



一、 Application：

Mainly used for cabling various control cables,signal cables and special cable and also apply to flexible conductor stranding.The parts modified also can undertake steel wire armored, copper wire screening.


二、 Componse：

1 Φ1250 shaft-less pay-off stand  1 set
2 φ500/6 B stranding cage,including single die holder  1 set
3 φ500/12B stranding cage,including single die holder  1 set
4 Φ400/2 common taping machine  1 set
5 30KW variable frequency motor and main drive gearbox system 1 set
6 Horizontal meter counter 1 set
7 Φ1600 dual wheel capstan with strength 54step gearbox 1 set
8 Φ2000 shaft-less take-up and traversing stand  1 set
9 electrical control system, transmission system, safety protection system and foundation bolt 1set


三、 Technology data：

1. Single wire diameter： (aluminium wire,copper wire)Φ1.00～Φ3.0mm

                                    (insulate wire)Φ1.0～Φ6.0mm

2.Cable diameter：                         ≤30mm

3. Laying-up pitch： 43～918  mm

4. Taping speed： 178～396 r/min

5. Taping pitch： 9～188 mm

6. Linear speed： 3.74～33.43m/min

7. Specification of cradle in cage： PN500或PND500

8. Central pay-off stand： PN630～PN1250

9. Take-up bobbin size： PN800～PN1600

10.Main motor power： 30KW  DC

11.Central height： 1000mm


四、 Main foundation drawing：


五、 Main pictures：

stranding machine, wire stranding machine, copper wire stranding machine, aluminium wire stranding machine, 500 stranding machine,
