high speed KJY500/36+36 steel wire armoring machine

Pinghu Digong
high speed KJY500/36+36 steel wire armoring machine

model: KJY500/36+36
drive type: groundshaft
MOQ: 1 set

Send Inquiry

Description

KJY500/36+36 72B

Steel Wire Armoring Machine

（click the picture for seening the video）




一、Application：

Mainly used for wire armoring of various types of cables and wire screening.


二、 Structure：

Cage cradle, secondary structure, each section of the form“10+10+10+6”


三、 Componse：

1 Φ2500 shaft-less pay-off stand 1 set
2 Φ500/36 B stranding cage 1 set
3 Φ500/36 B stranding cage 1 set
4 dual die holder 2 set
5 90KW variable frequency motor and main drive gearbox system 1 set
6 φ500/2 semi-tangent taping head 1 set
7 Φ800/2 steel taping head 1 set
8 meter counter 1 set
9 Φ2500 dual wheel traction device with 54-step gearbox 1 set
10 Φ3150 shaft-less take-up and traversing stand 1 set
11 Electrical control system、transmission system, safety protection system and foundation bolt 1 set



四、 Technology data：

1. single wire diameter： Φ0.6～Φ3.6mm

2 .wire quantity： 72

3. cable diameter befor armoring ： Φ20～Φ120mm

4. rotating speed ： 13.6～32.6 r/min

5. armoring pitch: 95～2647 mm

6. taping speed： 188～419r/min

7. taping pitch： 7～186mm

8 .steel taping speed： 118～270r/min

9. steel taping pitch： 11～297mm

10.linear speed ： 3.1～35.0 m/min

11. main motor power： 90KW   1500rpm

12.specification of cradle in cage ： PN500

13. haul-off device： Φ2500 dual wheel traction

14.pay-off reel stand： PN1250～PN2500

15.take-up reel stand： PN1600～PN3150

16. take-up motor： 10Kg.m torque motor


五、 Foundation drawing：

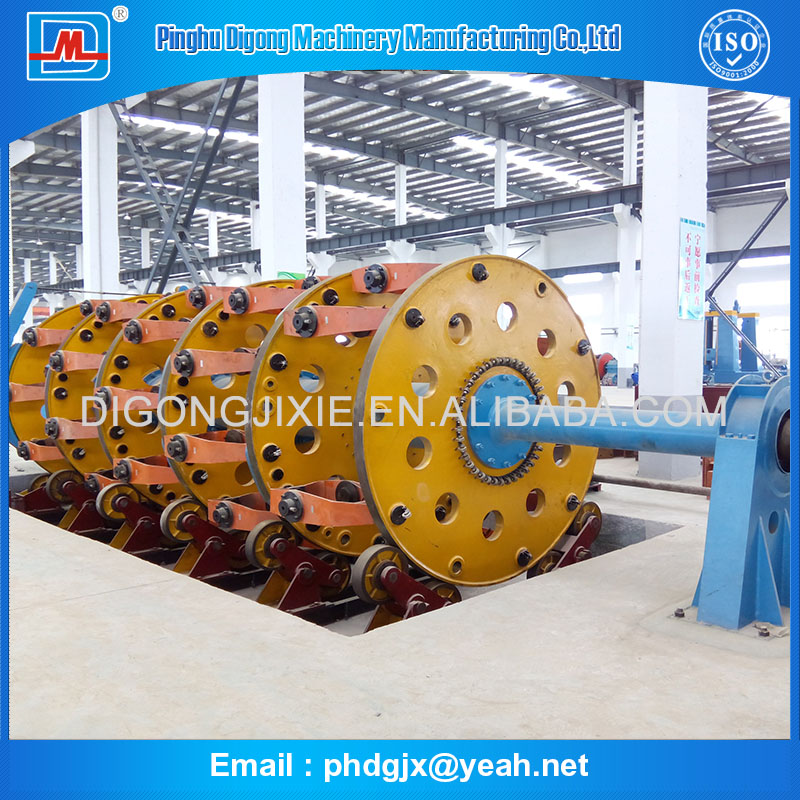

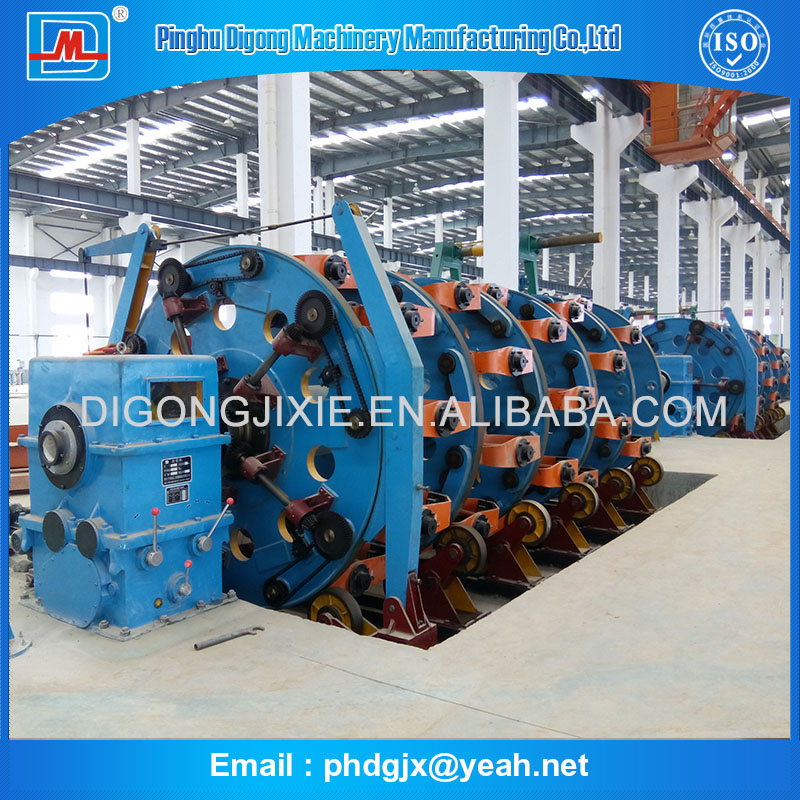

六、 Main pictures：

armoring machine, wire armoring machine, steel wire armoring machine, 500 wire armoring machine,
