Cabling machine
high-speed cable taping machine for wrapping paper tape or aluminum foil
Pinghu Digong
size: φ400、φ500、φ600
drive: motor
MOQ: 1 set
Description

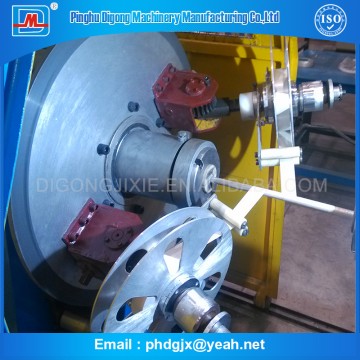

High Speed Cable Taping Machine
Driven By Separated Motor
(click the picture for seeing the video）
Sub-power common taping machine is used for the non-metal taping of all kinds of cable.This machine adopts news mode of electronmechanical control method, with electronic gearbox unit to substitute the mechanical gearbox. That function is greatly improving the productivity and products quality, and providing excellent equipments for manufacturing high-quality insulation cable.
一、Characteristic：
1、Structure of common taping machine is taping angle adjustable via worm ang gear, each tape reel adjustable separately and the pay-off tension controlled by mechanical friction and adjusted manually.
二、Technology data：
model
common taping machine - driven by separated motor
drive type
motor
size
φ400，φ500，φ600
taping material
polyester belt, non-woven belt, aluminum-plastic composite belt
noise
<=85db
brake form
electric hydraulic
pitch
step-less
maximum rotating speed
450rpm
At present, most of the Chinese wire and cable plants adopts traditional gearbox transmission and tension control by mechanical brake, leading to the shortcomings of Chinese taping device including low speed, low efficiency and unequal tension,etc.
Sub-power cable taping machine improves the productivity of cabling machine.
三、Main pictures：
taping machine, cable taping machine, high speed cable taping machine, wrapping machine, cable wrapping machine,
