Stranding machines

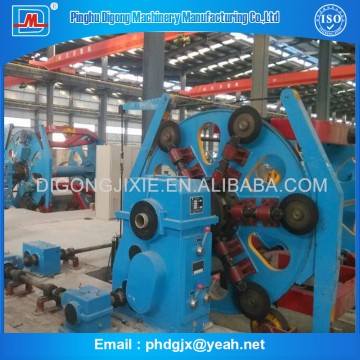

factory supply cable making machine - CLY1250/1+6 cage type cabling machine
Pinghu Digong
maximum cable diameter: ≤80mm
model: 1250/1+6
drive type: groundshaft
MOQ: 1 set
Description
Cable making machine
CLY1250/1+6 cage type cabling machine
Application：
Mainly used for laying-up and armoring various 7-core below of round and fan rubber cables and special cables.
Components：
| Number | Designation | Quantity |
| 1 | Φ1250 shaft-less pay-off stand | 1 set |
| 2 | Φ1250/6B stranding cage | 1 set |
| 3 | Dual die holder | 1 set |
| 4 | 37kw variable frequency motor and main drive gearbox system | 1 set |
| 5 | Φ400/2common taping head(with shared base） | 1 set |
| 6 | Φ630/2semi-tangent steel taping head(with shared base） | 1 set |
| 7 | Vertical meter counter | 1 set |
| 8 | Φ2000 single capstan wheel with standard 27-step gearbox | 1 set |
| 9 | Φ2500 shaft-less take-up and traversing | 1 set |
| 10 | Electrical control system、transmission system, safety protection system and foundation bolt | 1 set |
Main technology data：
1. Maximum diameter for cabling： Φ80mm
2. Rotating speed： 14.11～33.62r/min
3. Laying-up pitch： 293～3121mm
4. Lapping speed： 188～419r/min
5. Taping pitch： 24～234mm
6. Steel tape speed： 161～369r/min
7. Steel tape pitch： 27～273mm
Pictures：
cable making machine, cabling machine, cage type cabling machine, 1250 cabling machine, 1+6 cabling machine,
