JLY500/6+12+18 high speed multi-function planetary cage type stranding machine
Share us

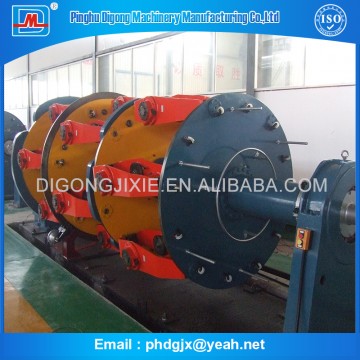

JLY500/6+12+18 high speed multi-function planetary cage type stranding machine

Pinghu Digong
JLY500/6+12+18 high speed multi-function planetary cage type stranding machine
JLY500/6+12+18 high speed multi-function planetary cage type stranding machine

model: JLY500/6+12+18
function: laying-up ,stranding ,armoring ,screening
drive type: groundshaft
MOQ: 1 s.et

Send Inquiry

Description


               JLY500/6+12+18 High Speed Multi-function

                Planetary Cage Type Stranding Machine




一、 Application：

 Mainly used for cabling various control cables,signal cables and special cable and also apply to flexible conductor stranding.The parts modified also can undertake steel wire armored, copper wire screening.



二、 Components：

1 Φ1250 shaft-less pay-off stand  1 set
2 φ500/6 B stranding cage,including single die holder 1 set
3 φ500/12B stranding cage,including single die holder 1 set
4 φ500/18B stranding cage,including single die holder 1 set
5 Φ400/2 common taping head 1 set
6 45KW variable frequency motor and main drive gearbox system  1 set
7 Horizontal meter counter 1 set
8 Φ1600 dual wheel capstan with strength 54-step gearbox 1 set
9 Φ2000 shaft-less take-up and traversing 1 set
10 electrical control system, transmission system, safety protection system and foundation bolt 1 set


三、 Technology data：

1. single wire diameter： (aluminium wire、copper wire)Φ1.2～Φ4.0mm

                                    (insulate wire )Φ2.0～Φ8mm

2. rotating speed：6、12、18B：    36、 44、 52、 ; 63、 74、 87r/min

3. laying-up pitch： 43～918  mm

4. taping speed： 178～396 r/min

5. taping pitch： 9～188 mm

6. linear speed： 3.74～33.43m/min

7. specification of cradle in cage： PN500或PND500

8. central pay-off stand： PN630～PN1250

9. take-up bobbin size： PN1000～PN2000

10.main motor power： 45KW  DC

11.central height： 1000mm


四、 Main foundation drawing：


五、 Main pictures：
