professional cable machine manufacturer-JLY630/6+12+18+24 high speed planetary cable stranding machi
Share us

professional cable machine manufacturer-JLY630/6+12+18+24 high speed planetary cable stranding machi

professional cable machine manufacturer-JLY630/6+12+18+24 high speed planetary cable stranding machi
professional cable machine manufacturer-JLY630/6+12+18+24 high speed planetary cable stranding machi
professional cable machine manufacturer-JLY630/6+12+18+24 high speed planetary cable stranding machi

model: JLY630/6+12+18+24
drive type: groundshaft
usage: stranding ,armoring and screening
MOQ: 1 set

Send Inquiry

Description

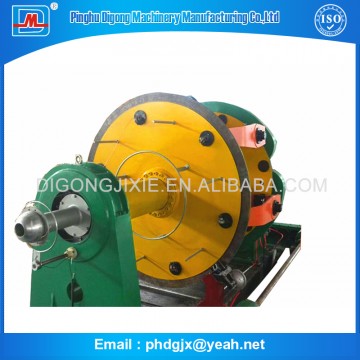

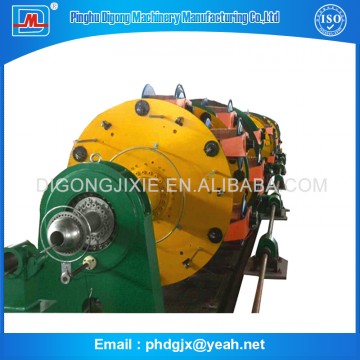

JLY630/6+12+18+24 high speed planetary cable stranding machine



一、 Application：

Mainly used for cabling various control cables,signal cables and special cable and also apply to flexible conductor stranding.The parts modified also can undertake steel wire armored, copper wire screening.


二、 Componse：

1 Φ630 shaft-less pay-off stand 1 set
2 Φ630/6 B stranding cage, including dual die holder 1 set
3 Φ630/12 B stranding cage, including dual die holder 1 set
4 Φ630/18 B stranding cage, including dual die holder 1 set
5 Φ630/24 B stranding cage, including dual die holder 1 set
6 Φ400/2 common taping head  1 set
7 90KW variable frequency motor and main drive gearbox system 1 set
8 Horizontal meter counter 1 set
9 Φ2000 dual wheel capstan with strength 54-step gearbox 1 set
10 Φ2500 shaft-less take-up and traversing 1 set
11 electrical control system, transmission system, safety protection system and foundation bolt 1 set


三、 Technology data：

1. single wire diameter： (aluminium wire ,copper wire)Φ1.2～Φ4.2mm

                                    (insulate wire )Φ2.0～Φ8.0mm

2. rotating speed： 29.97、 36.39、 42.59、 ; 51.72、 58.81、 71.42r/min

3. laying-up pitch： 48～1046mm

4. taping speed： 178～396 r/min

5. taping pitch： 9～176 mm

6. linear speed： 3.42～31.36m/min

7. specification of cradle in cage： PN630（or PND630）

8. central pay-off stand： PN630(or PND630）

9. take-up bobbin size： PN1600～PN3150

10. main motor power： 75KW  variable frequency motor

11. central height： 1000mm


四、 Main foundation drawing：


五、 Main pictures：



cable stranding machine, planetary cable stranding machine, high speed planetary cable stranding machine, 630 stranding machine,
